US Foundry 118-5650 Round Inlet Frame & Grate (22-3/8" Clear Opening)
Price available on request
SKU
USF-118-5650
Current US Foundry 118-5650 gray iron round frame-and-grate combination with a clear opening of 22-3/8" and a grate measuring 23-3/4". Quote to confirm fit and availability.

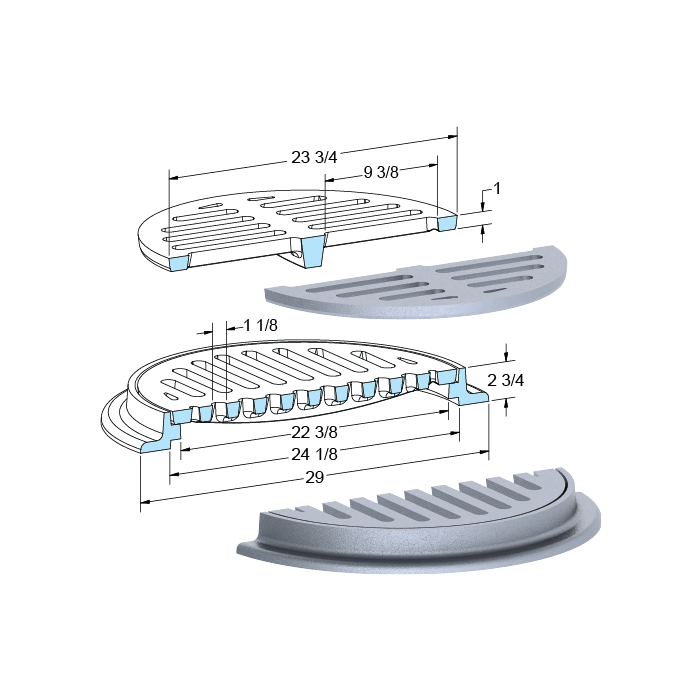

The US Foundry 118-5650 round inlet frame-and-grate combination provides a clear opening of 22-3/8", a grate diameter of 23-3/4", and a seat depth of 1". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.
Current frame geometry includes a frame opening diameter of 24-1/8", a frame flange diameter of 29", a frame height of 2-3/4", and a weir perimeter of 6.2 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 118-5650
- Clear opening diameter 22-3/8"; grate diameter 23-3/4"
- Frame opening diameter 24-1/8"
- Frame flange diameter 29"
- Frame height 2-3/4"; seat depth 1"; Gray Iron construction
- Highest load rating Light Duty
- Weir perimeter 6.2 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 118-5650 |
| Length | 29" |
| Width | 29" |
| Height | 2-3/4" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Round Inlet Frame & Grate |
| Size | 22-3/8" Clear Opening |
