US Foundry 120-5665 Round Inlet Frame & Grate (32-1/2" Clear Opening)
Price available on request
SKU
USF-120-5665
Current US Foundry 120-5665 gray iron round frame-and-grate combination with a clear opening of 32-1/2" and a grate measuring 34-1/8". Quote to confirm fit and availability.

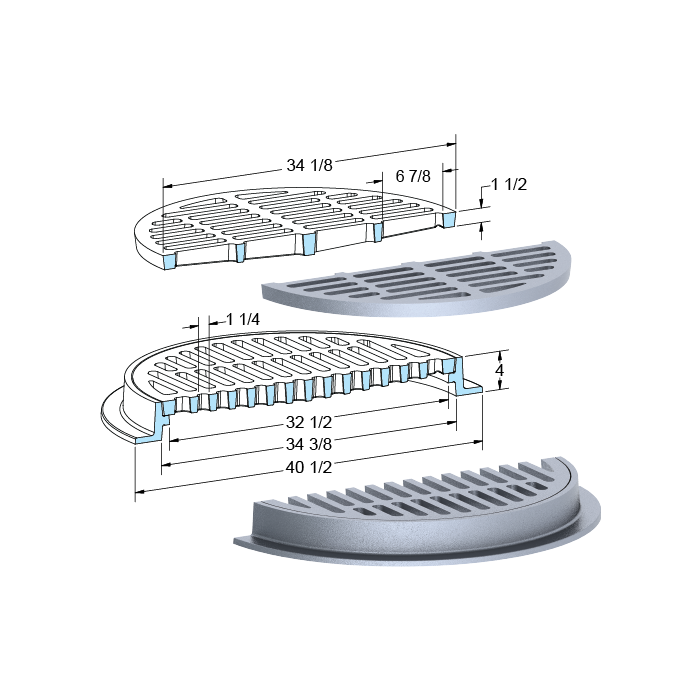

The US Foundry 120-5665 round inlet frame-and-grate combination provides a clear opening of 32-1/2", a grate diameter of 34-1/8", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.
Current frame geometry includes a frame opening diameter of 34-3/8", a frame flange diameter of 40-1/2", a frame height of 4", and a weir perimeter of 8.9 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 120-5665
- Clear opening diameter 32-1/2"; grate diameter 34-1/8"
- Frame opening diameter 34-3/8"
- Frame flange diameter 40-1/2"
- Frame height 4"; seat depth 1-1/2"; Gray Iron construction
- Highest load rating Light Duty
- Weir perimeter 8.9 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 120-5665 |
| Length | 40-1/2" |
| Width | 40-1/2" |
| Height | 4" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Round Inlet Frame & Grate |
| Size | 32-1/2" Clear Opening |
