US Foundry 1217-5655 Round Inlet Frame & Grate (24" Clear Opening)
Price available on request
SKU
USF-1217-5655
Current US Foundry 1217-5655 gray iron round frame-and-grate combination with a clear opening of 24" and a grate measuring 26-3/4". Quote to confirm fit and availability.

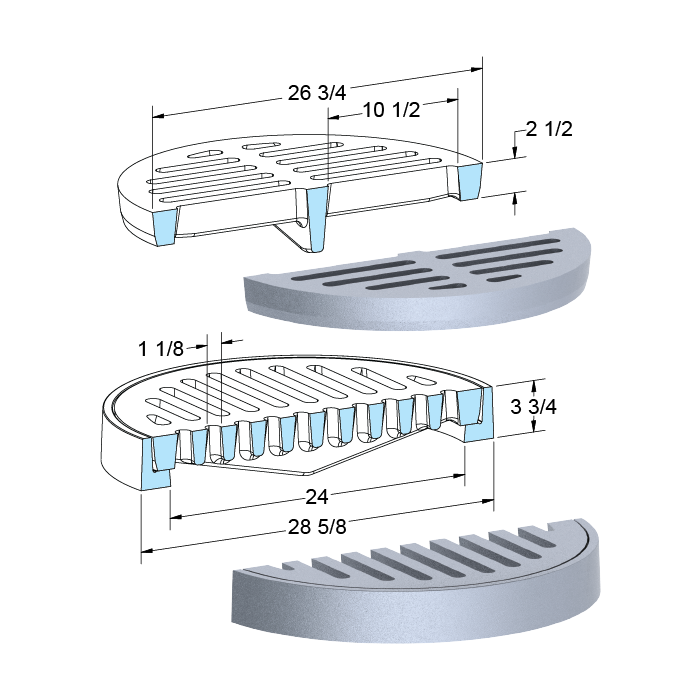

The US Foundry 1217-5655 round inlet frame-and-grate combination provides a clear opening of 24", a grate diameter of 26-3/4", and a seat depth of 2-1/2". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes a frame opening diameter of 24", a frame flange diameter of 38-5/8", a frame height of 3.75", and a weir perimeter of 7 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 1217-5655
- Clear opening diameter 24"; grate diameter 26-3/4"
- Frame opening diameter 24"
- Frame flange diameter 38-5/8"
- Frame height 3.75"; seat depth 2-1/2"; Gray Iron construction
- Highest load rating H-20
- Weir perimeter 7 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 1217-5655 |
| Length | 38-5/8" |
| Width | 38-5/8" |
| Height | 3.75" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Inlet Frame & Grate |
| Size | 24" Clear Opening |
