US Foundry 1305 Round Manhole Frame (30" Clear Opening)
Price available on request
SKU
USF-1305
Current US Foundry 1305 gray iron round manhole frame with a clear opening of 30", 8" frame height, and flange up frame. Quote to confirm fit and availability.

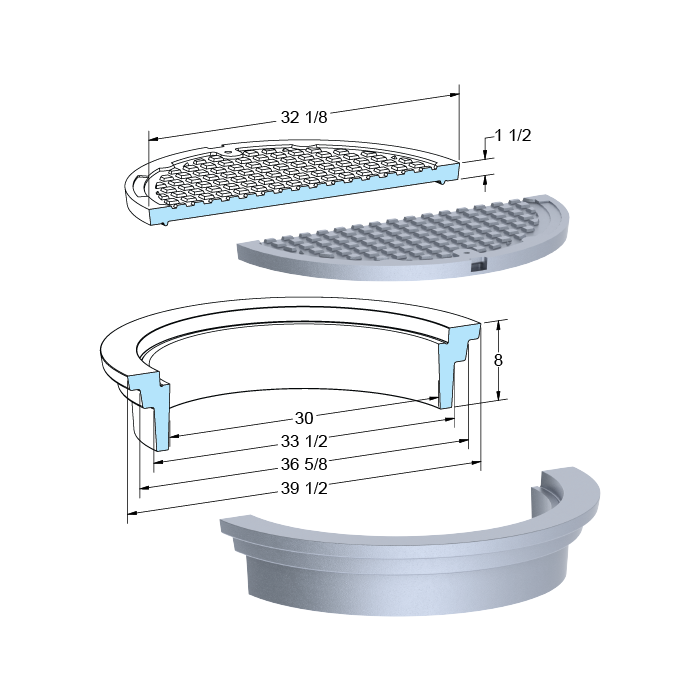

The US Foundry 1305 round manhole frame provides a clear opening of 30", a frame flange diameter of 39-1/2", and a frame height of 8". Its current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Frame geometry includes an opening diameter of 36-5/8", a cover diameter of 32-1/8", and a seat depth of 1-1/2". The frame type is Flange Up; request a quote through Drainage Connect to confirm the compatible cover, project configuration, and current availability.
- Current catalog number 1305
- Clear opening diameter 30"; cover diameter 32-1/8"
- Frame flange diameter 39-1/2"; frame opening diameter 36-5/8"
- Frame height 8"; seat depth 1-1/2"
- Gray Iron construction; Flange Up frame type
- Highest load rating H-20
- Bolted provision; gasket provision
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 1305 |
| Length | 39-1/2" |
| Width | 39-1/2" |
| Height | 8" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Manhole Frame |
| Size | 30" Clear Opening |
