US Foundry 1340-5681 Round Inlet Frame & Grate (35-1/4" Clear Opening)
Price available on request
SKU
USF-1340-5681
Current US Foundry 1340-5681 gray iron round frame-and-grate combination with a clear opening of 35-1/4" and a grate measuring 37". Quote to confirm fit and availability.
The US Foundry 1340-5681 round inlet frame-and-grate combination provides a clear opening of 35-1/4", a grate diameter of 37", and a seat depth of 1-3/8". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.

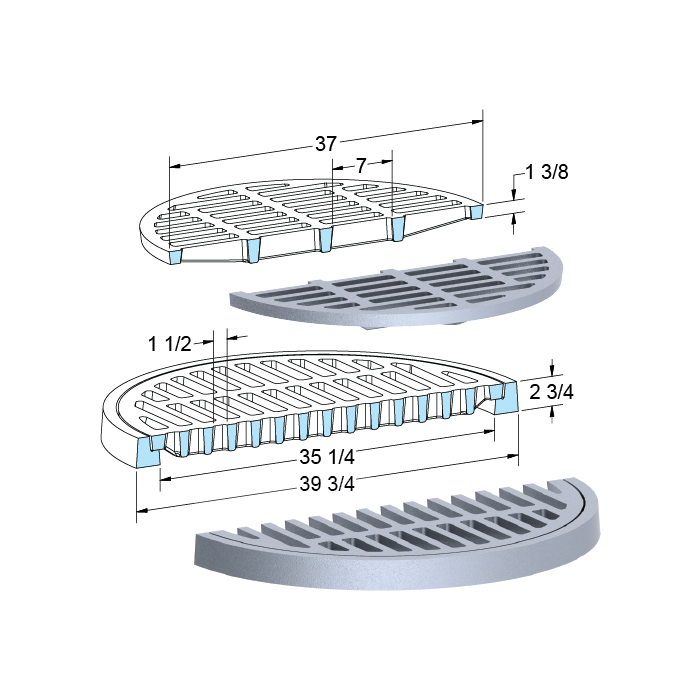

Current frame geometry includes a frame opening diameter of 35-1/4", a frame flange diameter of 39-3/4", a frame height of 2-3/4", and a weir perimeter of 9.6 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 1340-5681
- Clear opening diameter 35-1/4"; grate diameter 37"
- Frame opening diameter 35-1/4"
- Frame flange diameter 39-3/4"
- Frame height 2-3/4"; seat depth 1-3/8"; Gray Iron construction
- Load rating requires project confirmation
- Weir perimeter 9.6 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 1340-5681 |
| Length | 39-3/4" |
| Width | 39-3/4" |
| Height | 2-3/4" |
| Material | Gray Iron |
| Type | Round Inlet Frame & Grate |
| Size | 35-1/4" Clear Opening |
