US Foundry 1345 Round Manhole Frame (21-7/8" Clear Opening)
Price available on request
SKU
USF-1345
Current US Foundry 1345 gray iron round manhole frame with a clear opening of 21-7/8", 6" frame height, and flange down frame. Quote to confirm fit and availability.

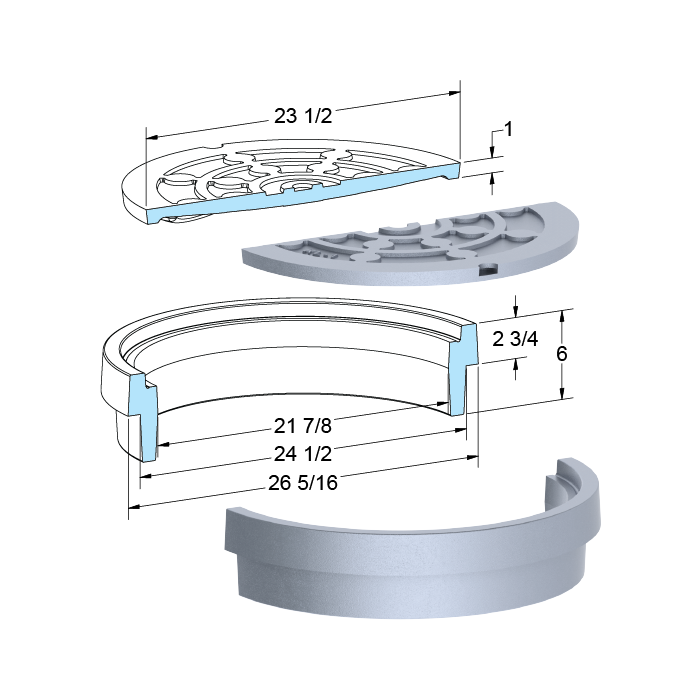

The US Foundry 1345 round manhole frame provides a clear opening of 21-7/8", a frame flange diameter of 26-5/16", and a frame height of 6". Its current manufacturer record identifies gray iron construction.
Frame geometry includes an opening diameter of 24-1/2", a cover diameter of 23-1/2", and a seat depth of 1". The frame type is Flange Down; request a quote through Drainage Connect to confirm the compatible cover, project configuration, and current availability.
- Current catalog number 1345
- Clear opening diameter 21-7/8"; cover diameter 23-1/2"
- Frame flange diameter 26-5/16"; frame opening diameter 24-1/2"
- Frame height 6"; seat depth 1"
- Gray Iron construction; Flange Down frame type
- Bolted provision; gasket provision
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 1345 |
| Length | 26-5/16" |
| Width | 26-5/16" |
| Height | 6" |
| Material | Gray Iron |
| Type | Round Manhole Frame |
| Size | 21-7/8" Clear Opening |
