US Foundry 234 Round Manhole Frame (21-5/16" Clear Opening)
Price available on request
SKU
USF-234
Current US Foundry 234 gray iron round manhole frame with a clear opening of 21-5/16", 4" frame height, and reversible frame. Quote to confirm fit and availability.

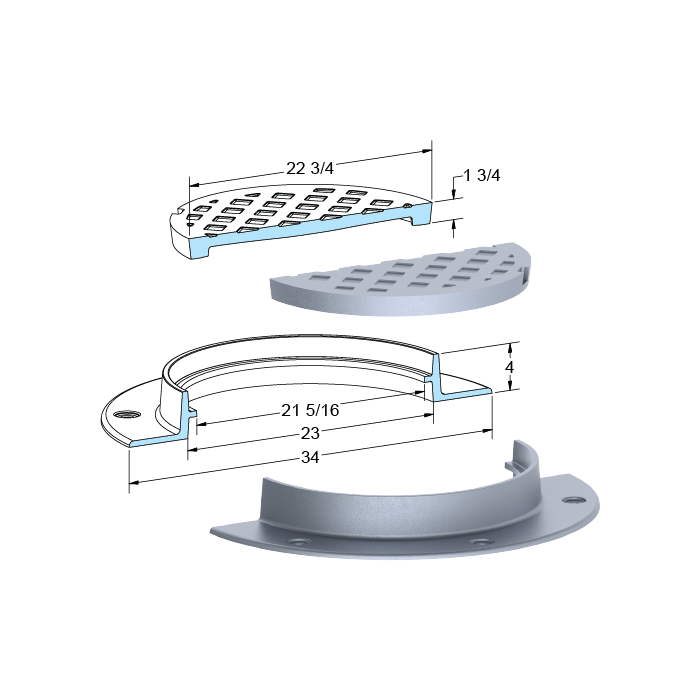

The US Foundry 234 round manhole frame provides a clear opening of 21-5/16", a frame flange diameter of 34", and a frame height of 4". Its current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Frame geometry includes an opening diameter of 23", a cover diameter of 22-3/4", and a seat depth of 1-3/4". The frame type is Reversible; request a quote through Drainage Connect to confirm the compatible cover, project configuration, and current availability.
- Current catalog number 234
- Clear opening diameter 21-5/16"; cover diameter 22-3/4"
- Frame flange diameter 34"; frame opening diameter 23"
- Frame height 4"; seat depth 1-3/4"
- Gray Iron construction; Reversible frame type
- Highest load rating H-20
- Bolted provision; gasket provision
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 234 |
| Length | 34" |
| Width | 34" |
| Height | 4" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Manhole Frame |
| Size | 21-5/16" Clear Opening |
