US Foundry 260-5640 Round Inlet Frame & Grate (20-1/2" Clear Opening)
Price available on request
SKU
USF-260-5640
Current US Foundry 260-5640 gray iron round frame-and-grate combination with a clear opening of 20-1/2" and a grate measuring 22-3/4". Quote to confirm fit and availability.

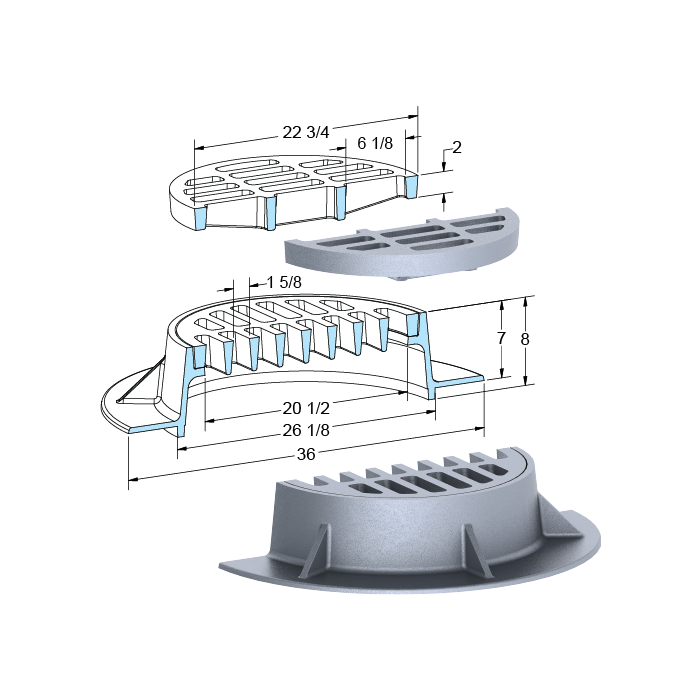

The US Foundry 260-5640 round inlet frame-and-grate combination provides a clear opening of 20-1/2", a grate diameter of 22-3/4", and a seat depth of 2". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes a frame opening diameter of 20-1/2", a frame flange diameter of 36", a frame height of 7", and a weir perimeter of 5.9 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 260-5640
- Clear opening diameter 20-1/2"; grate diameter 22-3/4"
- Frame opening diameter 20-1/2"
- Frame flange diameter 36"
- Frame height 7"; seat depth 2"; Gray Iron construction
- Highest load rating H-20
- Weir perimeter 5.9 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 260-5640 |
| Length | 36" |
| Width | 36" |
| Height | 7" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Inlet Frame & Grate |
| Size | 20-1/2" Clear Opening |
