US Foundry 349-350-5618 Round Inlet Frame & Grate (24" Clear Opening)
Price available on request
SKU
USF-349-350-5618
Current US Foundry 349-350-5618 gray iron round frame-and-grate combination with a clear opening of 24" and a grate measuring 25-3/4". Quote to confirm fit and availability.

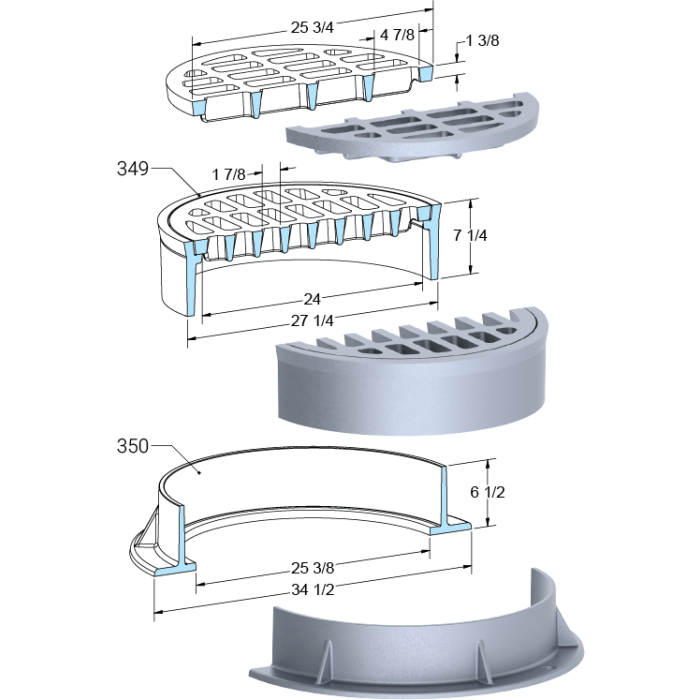

The US Foundry 349-350-5618 round inlet frame-and-grate combination provides a clear opening of 24", a grate diameter of 25-3/4", and a seat depth of 1-3/8". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes a frame opening diameter of 25.375", a frame flange diameter of 34-1/2", and a weir perimeter of 6.7 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 349-350-5618
- Clear opening diameter 24"; grate diameter 25-3/4"
- Frame opening diameter 25.375"
- Frame flange diameter 34-1/2"
- Seat depth 1-3/8"; Gray Iron construction
- Highest load rating H-20
- Weir perimeter 6.7 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 349-350-5618 |
| Length | 34-1/2" |
| Width | 34-1/2" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Inlet Frame & Grate |
| Size | 24" Clear Opening |
