US Foundry 3668-5629 Round Inlet Frame & Grate (11-1/2" Clear Opening)
Price available on request
SKU
USF-3668-5629
Current US Foundry 3668-5629 gray iron round frame-and-grate combination with a clear opening of 11-1/2" and a grate measuring 13-1/4". Quote to confirm fit and availability.

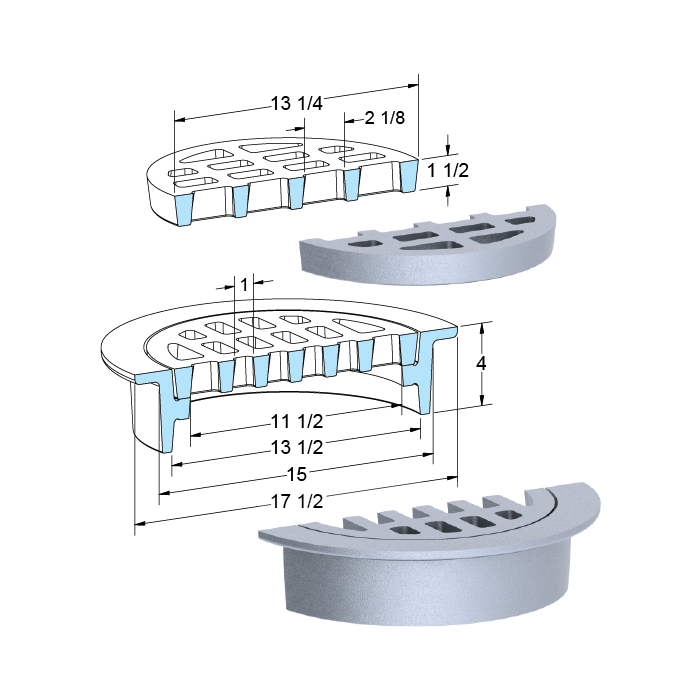

The US Foundry 3668-5629 round inlet frame-and-grate combination provides a clear opening of 11-1/2", a grate diameter of 13-1/4", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.
Current frame geometry includes a frame opening diameter of 15", a frame flange diameter of 17-1/2", a frame height of 4", and a weir perimeter of 3.4 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 3668-5629
- Clear opening diameter 11-1/2"; grate diameter 13-1/4"
- Frame opening diameter 15"
- Frame flange diameter 17-1/2"
- Frame height 4"; seat depth 1-1/2"; Gray Iron construction
- Load rating requires project confirmation
- Weir perimeter 3.4 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 3668-5629 |
| Length | 17-1/2" |
| Width | 17-1/2" |
| Height | 4" |
| Material | Gray Iron |
| Type | Round Inlet Frame & Grate |
| Size | 11-1/2" Clear Opening |
