US Foundry 4000-6349 Rectangular Inlet Frame & Grate (30" x 30" Clear Opening)
Price available on request
SKU
USF-4000-6349
Current US Foundry 4000-6349 gray iron rectangular frame-and-grate combination with a clear opening of 30" x 30" and a grate measuring 31-3/4" x 31-3/4". Quote to confirm fit and availability.

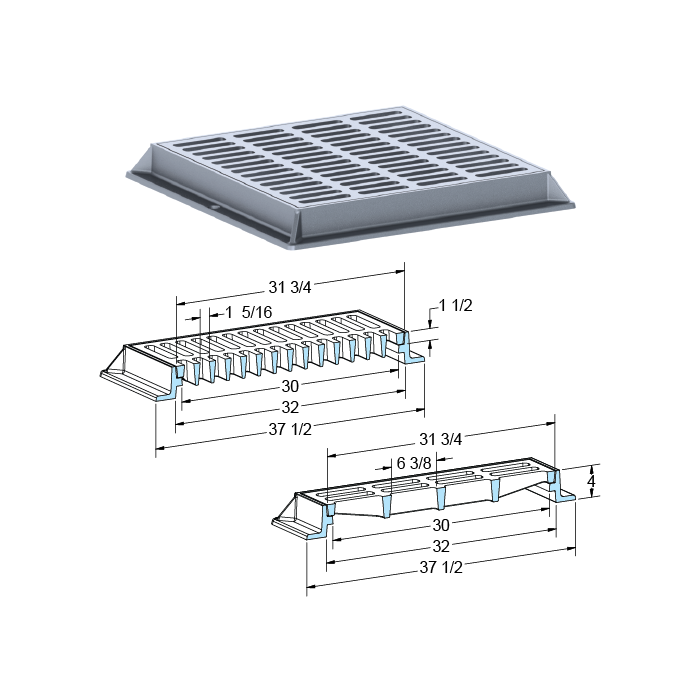

The US Foundry 4000-6349 rectangular inlet frame-and-grate combination provides a clear opening of 30" x 30", grate dimensions of 31-3/4" x 31-3/4", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes an opening of 32" x 32", a flange of 37-1/2" x 37-1/2", and a frame height of 4". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4000-6349
- Clear opening 30" x 30"; grate 31-3/4" x 31-3/4"
- Frame opening 32" x 32"
- Frame flange 37-1/2" x 37-1/2"; frame height 4"
- Seat depth 1-1/2"; Gray Iron construction
- Highest load rating H-20
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4000-6349 |
| Length | 37-1/2" |
| Width | 37-1/2" |
| Height | 4" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Rectangular Inlet Frame & Grate |
| Size | 30" x 30" Clear Opening |
