US Foundry 4123-6179 Rectangular Inlet Frame & Grate (24" x 24" Clear Opening)
Price available on request
SKU
USF-4123-6179
Current US Foundry 4123-6179 gray iron rectangular frame-and-grate combination with a clear opening of 24" x 24" and a grate measuring 26" x 26". Quote to confirm fit and availability.
The US Foundry 4123-6179 rectangular inlet frame-and-grate combination provides a clear opening of 24" x 24", grate dimensions of 26" x 26", and a seat depth of 1". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.

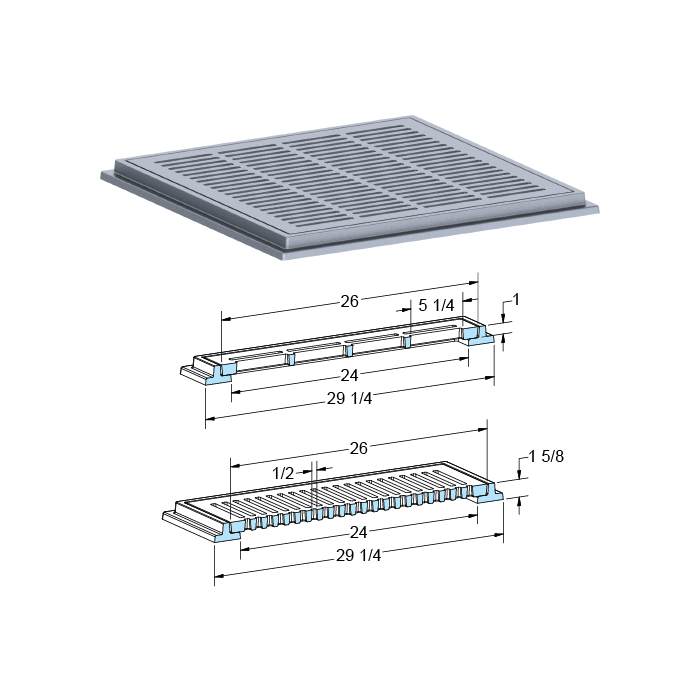

Current frame geometry includes an opening of 24" x 24", a flange of 29.25" x 29-1/4", and a frame height of 1-5/8". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4123-6179
- Clear opening 24" x 24"; grate 26" x 26"
- Frame opening 24" x 24"
- Frame flange 29.25" x 29-1/4"; frame height 1-5/8"
- Seat depth 1"; Gray Iron construction
- Highest load rating Light Duty
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4123-6179 |
| Length | 29-1/4" |
| Width | 29.25" |
| Height | 1-5/8" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Rectangular Inlet Frame & Grate |
| Size | 24" x 24" Clear Opening |
