US Foundry 4138-6218 Rectangular Inlet Frame & Grate (22-1/2" x 34-1/2" Clear Opening)
Price available on request
SKU
USF-4138-6218
Current US Foundry 4138-6218 gray iron rectangular frame-and-grate combination with a clear opening of 22-1/2" x 34-1/2" and a grate measuring 24" x 36". Quote to confirm fit and availability.

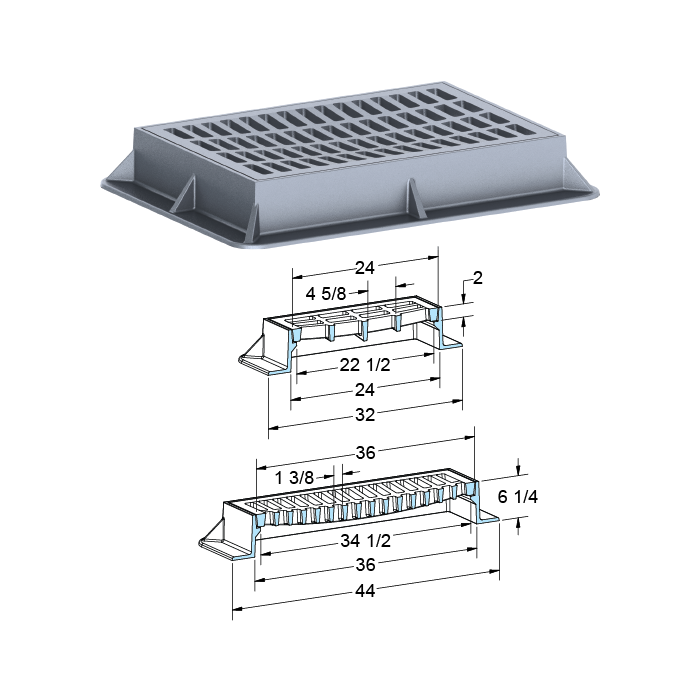

The US Foundry 4138-6218 rectangular inlet frame-and-grate combination provides a clear opening of 22-1/2" x 34-1/2", grate dimensions of 24" x 36", and a seat depth of 2". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes an opening of 24" x 36", a flange of 32" x 44", and a frame height of 6-1/4". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4138-6218
- Clear opening 22-1/2" x 34-1/2"; grate 24" x 36"
- Frame opening 24" x 36"
- Frame flange 32" x 44"; frame height 6-1/4"
- Seat depth 2"; Gray Iron construction
- Highest load rating H-20
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4138-6218 |
| Length | 44" |
| Width | 32" |
| Height | 6-1/4" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Rectangular Inlet Frame & Grate |
| Size | 22-1/2" x 34-1/2" Clear Opening |
