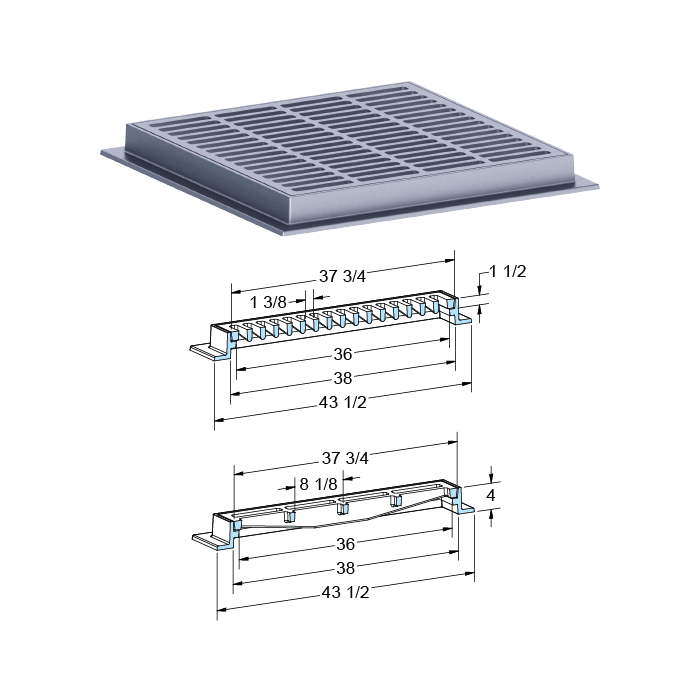

US Foundry 4156-6241 Rectangular Inlet Frame & Grate (36" x 36" Clear Opening)

The US Foundry 4156-6241 rectangular inlet frame-and-grate combination provides a clear opening of 36" x 36", grate dimensions of 37-3/4" x 37-3/4", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.

Current frame geometry includes an opening of 38" x 38", a flange of 43-1/2" x 43-1/2", and a frame height of 4". The current listing also reports a weir perimeter of 12.5 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.

• Current catalog number 4156-6241
• Clear opening 36" x 36"; grate 37-3/4" x 37-3/4"
• Frame opening 38" x 38"
• Frame flange 43-1/2" x 43-1/2"; frame height 4"
• Seat depth 1-1/2"; Gray Iron construction
• Load rating requires project confirmation; weir perimeter 12.5 ft

Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
