US Foundry 4196-6352 Rectangular Inlet Frame & Grate (19-1/2" x 45-1/2" Clear Opening)
Price available on request
SKU
USF-4196-6352
Current US Foundry 4196-6352 gray iron rectangular frame-and-grate combination with a clear opening of 19-1/2" x 45-1/2" and a grate measuring 22" x 48". Quote to confirm fit and availability.

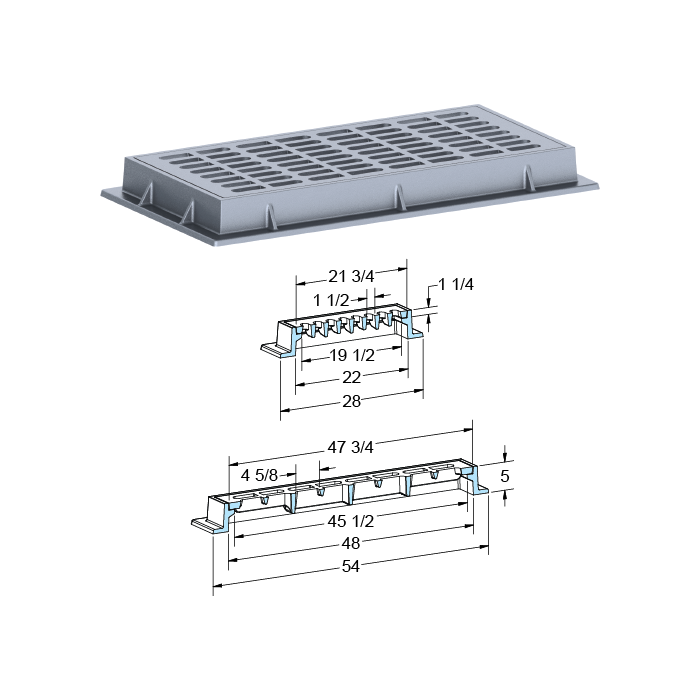

The US Foundry 4196-6352 rectangular inlet frame-and-grate combination provides a clear opening of 19-1/2" x 45-1/2", grate dimensions of 22" x 48", and a seat depth of 1-1/4". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.
Current frame geometry includes an opening of 22" x 48", a flange of 28" x 54", and a frame height of 5". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4196-6352
- Clear opening 19-1/2" x 45-1/2"; grate 22" x 48"
- Frame opening 22" x 48"
- Frame flange 28" x 54"; frame height 5"
- Seat depth 1-1/4"; Gray Iron construction
- Load rating requires project confirmation
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4196-6352 |
| Length | 54" |
| Width | 28" |
| Height | 5" |
| Material | Gray Iron |
| Type | Rectangular Inlet Frame & Grate |
| Size | 19-1/2" x 45-1/2" Clear Opening |
