US Foundry 4601-6410 Rectangular Inlet Frame & Grate (24-1/4" x 36" Clear Opening)
Price available on request
SKU
USF-4601-6410
Current US Foundry 4601-6410 gray iron rectangular frame-and-grate combination with a clear opening of 24-1/4" x 36" and a grate measuring 28-1/4" x 40". Quote to confirm fit and availability.
The US Foundry 4601-6410 rectangular inlet frame-and-grate combination provides a clear opening of 24-1/4" x 36", grate dimensions of 28-1/4" x 40", and a seat depth of 2-1/4". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.

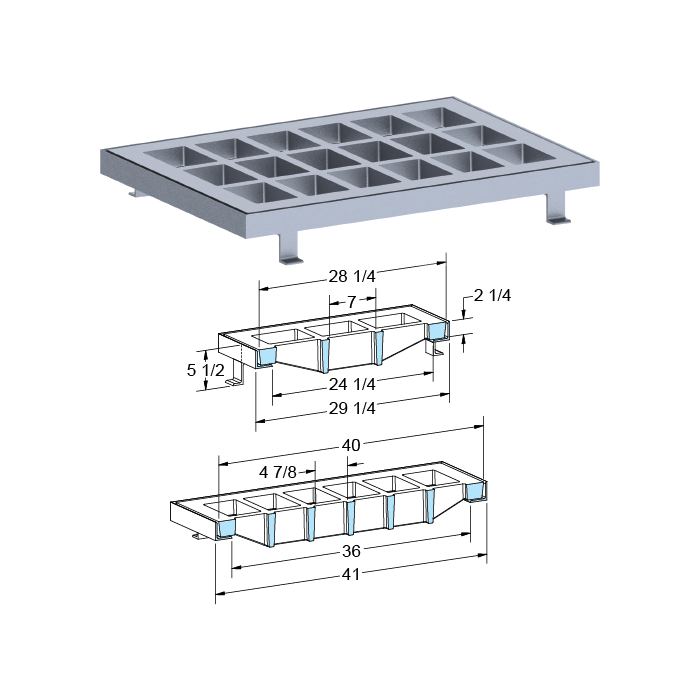

Current frame geometry includes an opening of 24-1/4" x 36", a flange of 29-1/4" x 41", and a frame height of 2-1/2". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4601-6410
- Clear opening 24-1/4" x 36"; grate 28-1/4" x 40"
- Frame opening 24-1/4" x 36"
- Frame flange 29-1/4" x 41"; frame height 2-1/2"
- Seat depth 2-1/4"; Gray Iron construction
- Load rating requires project confirmation
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4601-6410 |
| Length | 41" |
| Width | 29-1/4" |
| Height | 2-1/2" |
| Material | Gray Iron |
| Type | Rectangular Inlet Frame & Grate |
| Size | 24-1/4" x 36" Clear Opening |
