US Foundry 4602-6125 Rectangular Inlet Frame & Grate (12" x 12" Clear Opening)
Price available on request
SKU
USF-4602-6125
Current US Foundry 4602-6125 gray iron rectangular frame-and-grate combination with a clear opening of 12" x 12" and a grate measuring 13" x 13". Quote to confirm fit and availability.

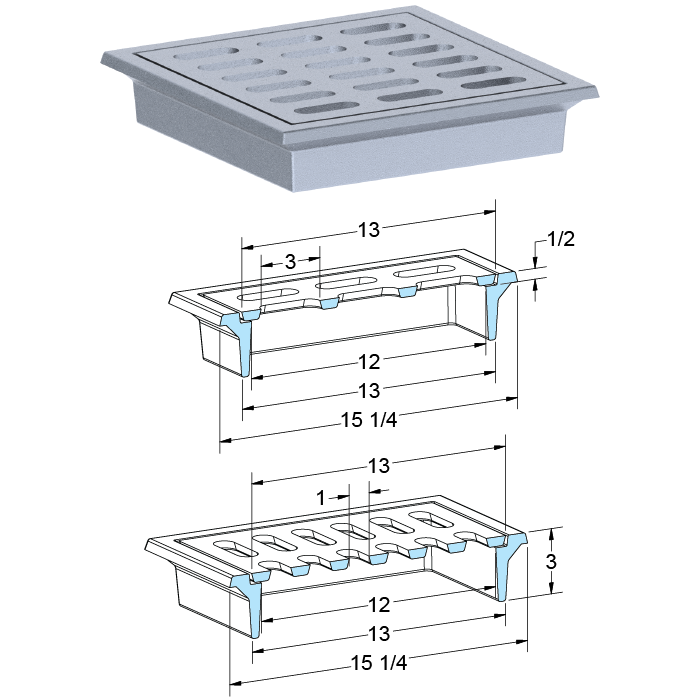

The US Foundry 4602-6125 rectangular inlet frame-and-grate combination provides a clear opening of 12" x 12", grate dimensions of 13" x 13", and a seat depth of 1/2". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.
Current frame geometry includes an opening of 13" x 13", a flange of 15-1/4" x 15-1/4", and a frame height of 3". The current listing also reports a weir perimeter of 4.3 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4602-6125
- Clear opening 12" x 12"; grate 13" x 13"
- Frame opening 13" x 13"
- Frame flange 15-1/4" x 15-1/4"; frame height 3"
- Seat depth 1/2"; Gray Iron construction
- Highest load rating Light Duty; weir perimeter 4.3 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4602-6125 |
| Length | 15-1/4" |
| Width | 15-1/4" |
| Height | 3" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Rectangular Inlet Frame & Grate |
| Size | 12" x 12" Clear Opening |
