US Foundry 4613-6232 Rectangular Inlet Frame & Grate (13-1/4" x 13-1/4" Clear Opening)
The US Foundry 4613-6232 rectangular inlet frame-and-grate combination provides a clear opening of 13-1/4" x 13-1/4", grate dimensions of 14-3/8" x 14-3/8", and a seat depth of 1". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.

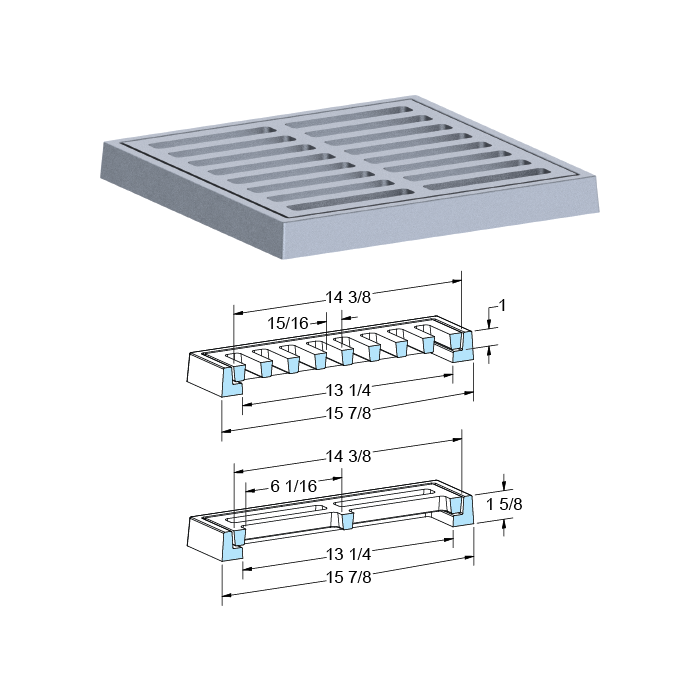

Current frame geometry includes an opening of 13-1/4" x 13-1/4", a flange of 15.875" x 15.875", and a frame height of 1-5/8". The current listing also reports a weir perimeter of 4.7 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4613-6232
- Clear opening 13-1/4" x 13-1/4"; grate 14-3/8" x 14-3/8"
- Frame opening 13-1/4" x 13-1/4"
- Frame flange 15.875" x 15.875"; frame height 1-5/8"
- Seat depth 1"; Gray Iron construction
- Highest load rating Light Duty; weir perimeter 4.7 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4613-6232 |
| Length | 15.875" |
| Width | 15.875" |
| Height | 1-5/8" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Rectangular Inlet Frame & Grate |
| Size | 13-1/4" x 13-1/4" Clear Opening |
