US Foundry 4620-6280 Rectangular Inlet Frame & Grate (24-7/8" x 48-5/8" Clear Opening)
Price available on request
SKU
USF-4620-6280
Current US Foundry 4620-6280 gray iron rectangular frame-and-grate combination with a clear opening of 24-7/8" x 48-5/8" and a grate measuring 27-7/8" x 51-1/2". Quote to confirm fit and availability.
The US Foundry 4620-6280 rectangular inlet frame-and-grate combination provides a clear opening of 24-7/8" x 48-5/8", grate dimensions of 27-7/8" x 51-1/2", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.

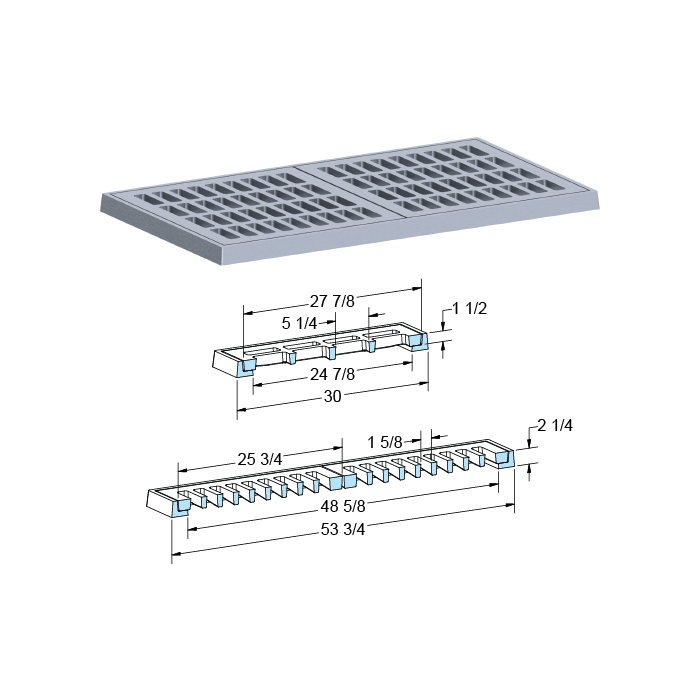

Current frame geometry includes an opening of 24-7/8" x 48-5/8", a flange of 30" x 53-3/4", and a frame height of 2-1/4". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4620-6280
- Clear opening 24-7/8" x 48-5/8"; grate 27-7/8" x 51-1/2"
- Frame opening 24-7/8" x 48-5/8"
- Frame flange 30" x 53-3/4"; frame height 2-1/4"
- Seat depth 1-1/2"; Gray Iron construction
- Load rating requires project confirmation
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4620-6280 |
| Length | 53-3/4" |
| Width | 30" |
| Height | 2-1/4" |
| Material | Gray Iron |
| Type | Rectangular Inlet Frame & Grate |
| Size | 24-7/8" x 48-5/8" Clear Opening |
