US Foundry 4651-6335 Rectangular Inlet Frame & Grate (36-1/2" x 36-1/2" Clear Opening)
Price available on request
SKU
USF-4651-6335
Current US Foundry 4651-6335 gray iron rectangular frame-and-grate combination with a clear opening of 36-1/2" x 36-1/2" and a grate measuring 38-3/8" x 38-3/8". Quote to confirm fit and availability.
The US Foundry 4651-6335 rectangular inlet frame-and-grate combination provides a clear opening of 36-1/2" x 36-1/2", grate dimensions of 38-3/8" x 38-3/8", and a seat depth of 2". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.

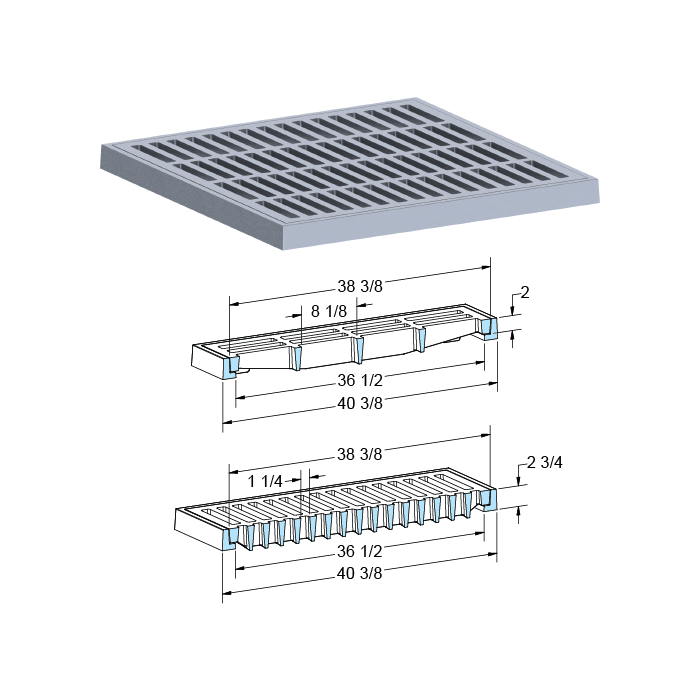

Current frame geometry includes an opening of 36-1/2" x 36-1/2", a flange of 40-3/8" x 40-3/8", and a frame height of 2-3/4". Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 4651-6335
- Clear opening 36-1/2" x 36-1/2"; grate 38-3/8" x 38-3/8"
- Frame opening 36-1/2" x 36-1/2"
- Frame flange 40-3/8" x 40-3/8"; frame height 2-3/4"
- Seat depth 2"; Gray Iron construction
- Load rating requires project confirmation
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 4651-6335 |
| Length | 40-3/8" |
| Width | 40-3/8" |
| Height | 2-3/4" |
| Material | Gray Iron |
| Type | Rectangular Inlet Frame & Grate |
| Size | 36-1/2" x 36-1/2" Clear Opening |
