US Foundry 571 Round Manhole Frame (22" Clear Opening)
Price available on request
SKU
USF-571
Current US Foundry 571 gray iron round manhole frame with a clear opening of 22", 4" frame height, and flange down frame. Quote to confirm fit and availability.

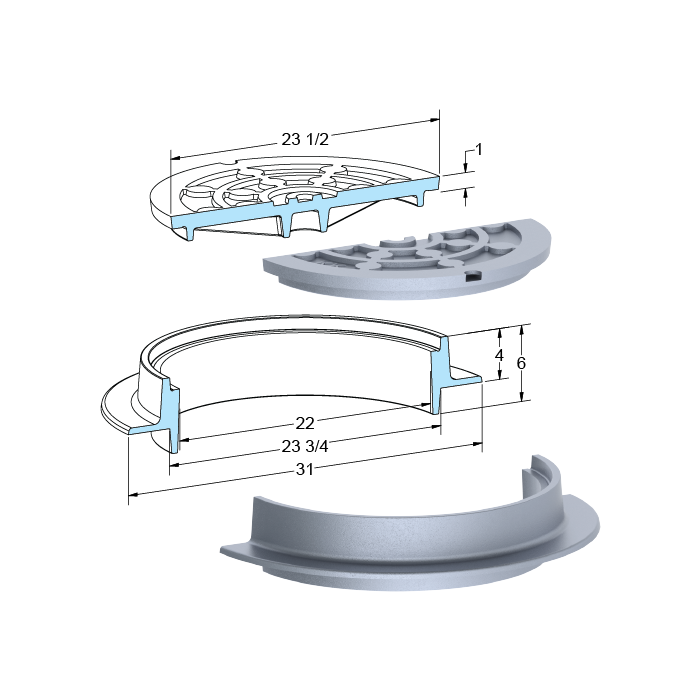

The US Foundry 571 round manhole frame provides a clear opening of 22", a frame flange diameter of 31", and a frame height of 4". Its current manufacturer record identifies gray iron construction.
Frame geometry includes an opening diameter of 23-3/4", a cover diameter of 23-1/2", and a seat depth of 1". The frame type is Flange Down; request a quote through Drainage Connect to confirm the compatible cover, project configuration, and current availability.
- Current catalog number 571
- Clear opening diameter 22"; cover diameter 23-1/2"
- Frame flange diameter 31"; frame opening diameter 23-3/4"
- Frame height 4"; seat depth 1"
- Gray Iron construction; Flange Down frame type
- Bolted provision; gasket provision
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 571 |
| Length | 31" |
| Width | 31" |
| Height | 4" |
| Material | Gray Iron |
| Type | Round Manhole Frame |
| Size | 22" Clear Opening |
