US Foundry 580-5645 Round Inlet Frame & Grate (22-5/16" Clear Opening)
Price available on request
SKU
USF-580-5645
Current US Foundry 580-5645 gray iron round frame-and-grate combination with a clear opening of 22-5/16" and a grate measuring 23-3/4". Quote to confirm fit and availability.

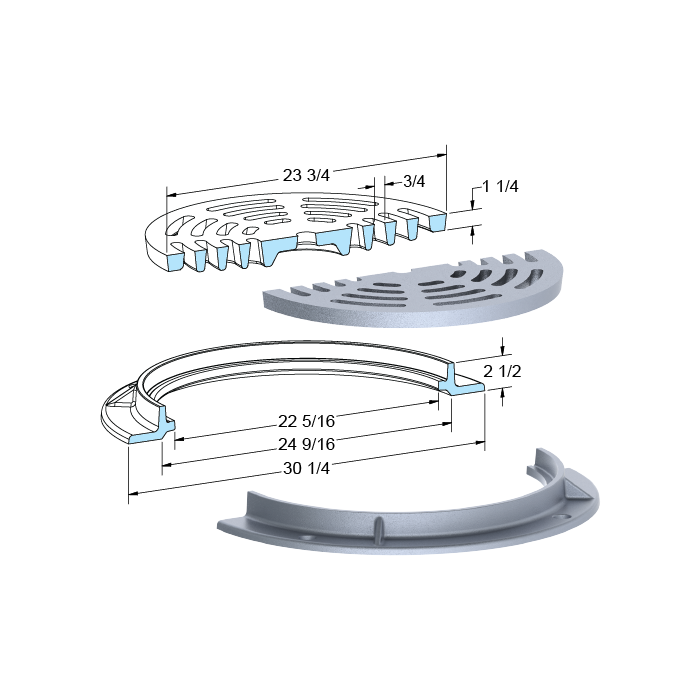

The US Foundry 580-5645 round inlet frame-and-grate combination provides a clear opening of 22-5/16", a grate diameter of 23-3/4", and a seat depth of 1-1/4". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes a frame opening diameter of 24-9/16", a frame flange diameter of 30-1/4", a frame height of 2-1/2", and a weir perimeter of 6.2 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 580-5645
- Clear opening diameter 22-5/16"; grate diameter 23-3/4"
- Frame opening diameter 24-9/16"
- Frame flange diameter 30-1/4"
- Frame height 2-1/2"; seat depth 1-1/4"; Gray Iron construction
- Highest load rating H-20
- Weir perimeter 6.2 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 580-5645 |
| Length | 30-1/4" |
| Width | 30-1/4" |
| Height | 2-1/2" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Inlet Frame & Grate |
| Size | 22-5/16" Clear Opening |
