US Foundry 600 Round Manhole Frame (22-3/8" Clear Opening)
Price available on request
SKU
USF-600
Current US Foundry 600 gray iron round manhole frame with a clear opening of 22-3/8", 7-1/4" frame height, and flange down frame. Quote to confirm fit and availability.

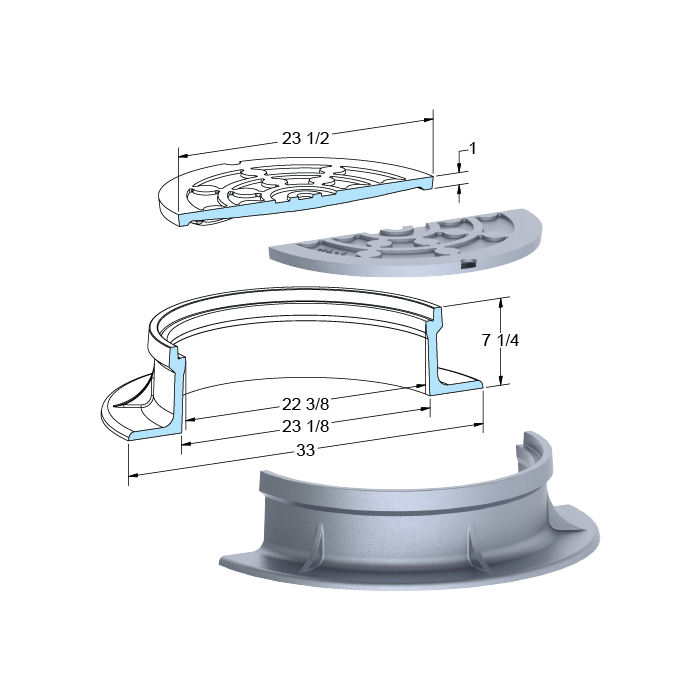

The US Foundry 600 round manhole frame provides a clear opening of 22-3/8", a frame flange diameter of 33", and a frame height of 7-1/4". Its current manufacturer record identifies gray iron construction.
Frame geometry includes an opening diameter of 23-1/8", a cover diameter of 23-1/2", and a seat depth of 1". The frame type is Flange Down; request a quote through Drainage Connect to confirm the compatible cover, project configuration, and current availability.
- Current catalog number 600
- Clear opening diameter 22-3/8"; cover diameter 23-1/2"
- Frame flange diameter 33"; frame opening diameter 23-1/8"
- Frame height 7-1/4"; seat depth 1"
- Gray Iron construction; Flange Down frame type
- Bolted provision; gasket provision
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 600 |
| Length | 33" |
| Width | 33" |
| Height | 7-1/4" |
| Material | Gray Iron |
| Type | Round Manhole Frame |
| Size | 22-3/8" Clear Opening |
