US Foundry 7620-5600 Round Inlet Frame & Grate (11-1/2" Clear Opening)
Price available on request
SKU
USF-7620-5600
Current US Foundry 7620-5600 gray iron round frame-and-grate combination with a clear opening of 11-1/2" and a grate measuring 13". Quote to confirm fit and availability.

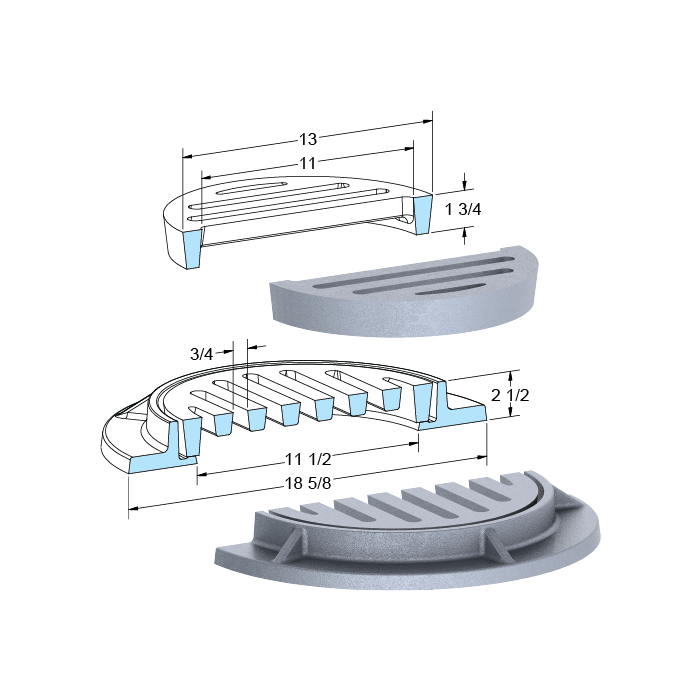

The US Foundry 7620-5600 round inlet frame-and-grate combination provides a clear opening of 11-1/2", a grate diameter of 13", and a seat depth of 1-3/4". The current manufacturer record identifies gray iron construction and lists Light Duty as the highest load rating.
Current frame geometry includes a frame opening diameter of 11-1/2", a frame flange diameter of 18-5/8", a frame height of 2-1/2", and a weir perimeter of 3.4 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 7620-5600
- Clear opening diameter 11-1/2"; grate diameter 13"
- Frame opening diameter 11-1/2"
- Frame flange diameter 18-5/8"
- Frame height 2-1/2"; seat depth 1-3/4"; Gray Iron construction
- Highest load rating Light Duty
- Weir perimeter 3.4 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 7620-5600 |
| Length | 18-5/8" |
| Width | 18-5/8" |
| Height | 2-1/2" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: Light Duty |
| Type | Round Inlet Frame & Grate |
| Size | 11-1/2" Clear Opening |
