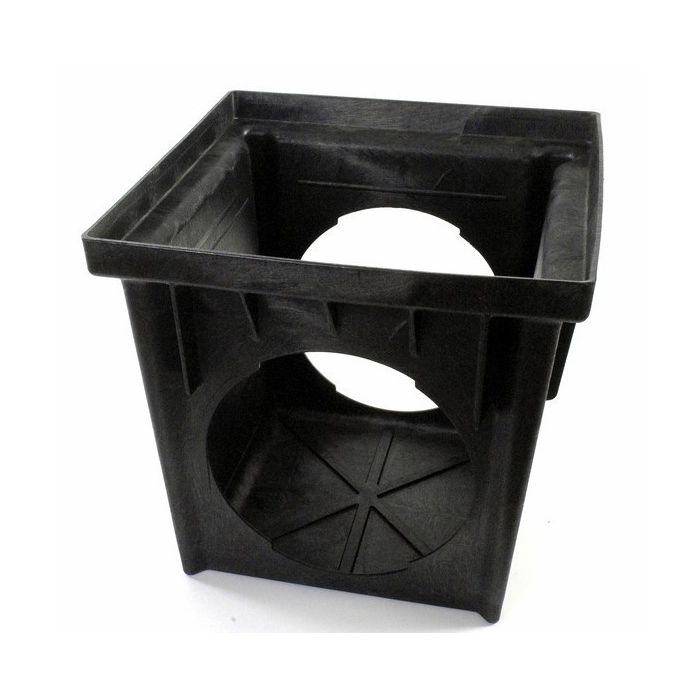

NDS 24" Catch Basin, 2 Openings

386,61 $
Disponible
SKU
2400

Dimensions:L:24-3/4" x W:24-3/4" x H:24"


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS 24" Catch Basin, 2 Openings

NDS 24-Inch Catch Basin is made of polyethylene, built to handle the demands of residential, commercial, and industrial environments. Used with a drain grate, the basin is part of a complete onsite drainage system that collects and directs water to drain pipes, which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. This product has the ability to connect to 3", 4", 6", 8", 10", and 12" sewer and drains pipes with designated outlet adapter(s). Catch basin flow rates will vary based on the size and type of pipe attached. Install with grate to block debris from entering and clogging the drainage system; load rating will vary based on the type of grate selected.

Quick Look

  • UV inhibitors
  • ADA Compliant
  • Material: HDPE ( High Density Polyethylene)
  • Use with 24” x 24” Grates
  • Connect to 10 in. and 12 in. drain pipe with outlet adapter (#2410); 8 in. drain pipe with (#2410 and #1888); 6 in. drain pipe with (#2410 and #1266); 3 in. and 4 in. drain pipes with (#2410 and #1242, #1243, or #1245), seal opening with (#2410 and #1206)
  • Keyed openings on basin lock outlet adapters in place
  • Connections between the catch basin and risers are soil tight, not water tight. Adding a bead of water proof silicone on each surface being connected will create a water tight connection
  • Requires #2410 Universal Outlet for each opening
  • NDS 24" Catch Basin Series
  • Product Class:10ND
Shop the entire line of NDS 24" Catch Basins Products

Additional Resources

NDS 24" Catch Basin Technical Specifications
NDS 24" Catch Basin Extension Technical Specifications
How to Properly Use A NDS Catch Basins
How To Stop Water From Puddling
Using NDS Catch Basins to Capture Run-off
How To Choose The Right Size NDS Catch Basin
Installing NDS Catch Basins
Specifications Sheets: NDS Catch Basin Flow Capacities

Installation Instructions

NDS 24" Catch Basin Installation for Landscape Applications
NDS 24" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 24" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 24" Catch Basin Plumbing Connection
NDS 24" Catch Basin Installation for Landscape Application with Riser
Más Información
Numero de parte 2400
Longitud 24-3/4"
Anchura 24-3/4"
Altura 24"
Peso 23 LBS
