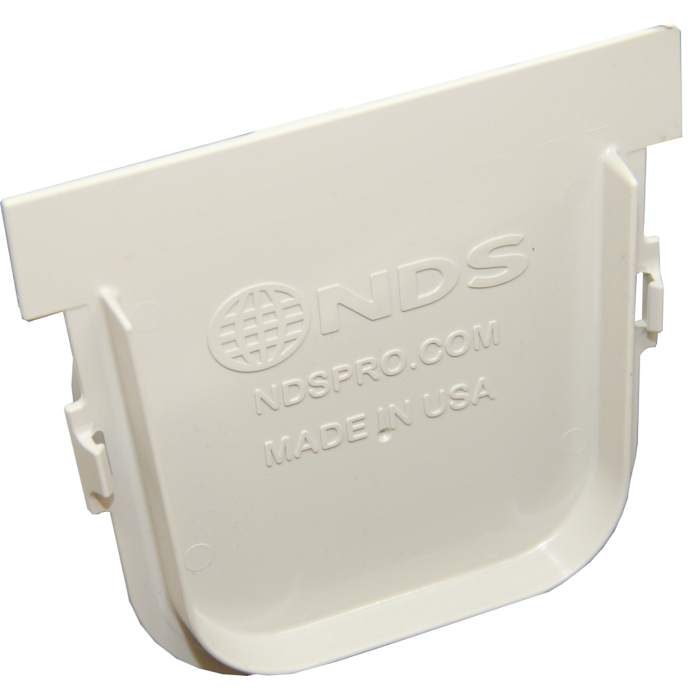

NDS 5" Pro Series Deep Profile End Cap

7,53 $
Disponible
SKU
812

Dimensions: 4-3/4" x 5"

Product Details: NDS 5" Pro Series Deep Profile End Cap

As part of the NDS 5" Pro Series Channel Drains Series, this polypropylene piece is used as a cap or an outlet at the end of a Pro Series deep profile interlocking channel. The channel locks into End Cap/End Outlets, providing an easy and customizable drainage installation, which can be made as long as necessary or as short as 4". Quality durability ensures withstanding high impact tire traffic.

Quick Look

  • Use with 5 in. Pro Series Channel Drains, Elbows, and Qwik-Turn™ Deep Radius Couplings to customize your drainage system layout
  • UV Inhibitors To Prevent Fading Or Cracking
  • Use as end cap to seal channel drain end
  • High Density Polyethylene
  • ADA Compliant
  • PVC glue can be used to glue all pieces together
  • Product Class: 25IN
  • Load Rating: Class B (61-175 PSI)
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series Additional Resources

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Deep Profile Channel Drain End Cap Technical Specifications

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
Más Información
Numero de parte 812
Color Grey
Anchura 5"
Longitud 4-3/4"
