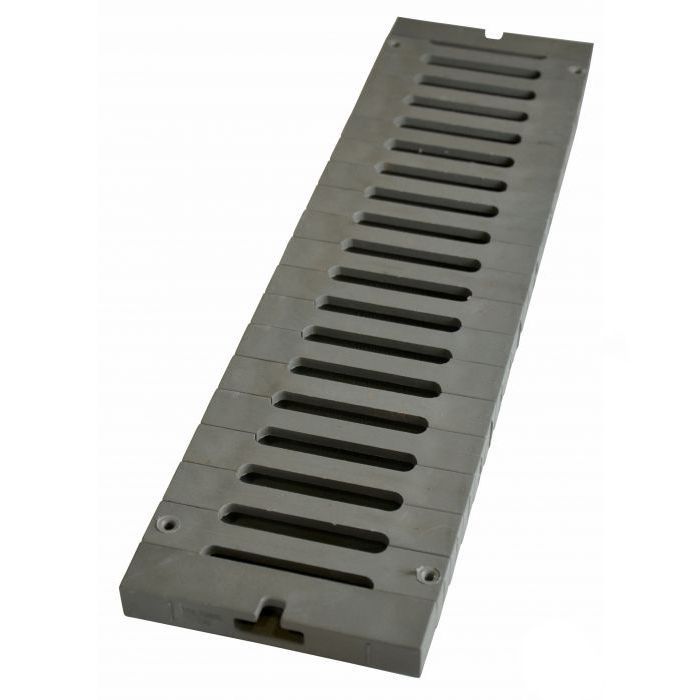

NDS 5" Pro Series Channel Grate, Heavy Traffic

100,16 $
Dimensions: 19-11/16" x 5-1/2" x 2-5/8"
Fits: 5” Pro Series Channel, Part #820 ( takes 1 grate) and Part #800 ( takes 2 grates)

Product Details: NDS 5" Pro Series Channel Grate, Heavy Traffic

NDS grates are a proven alternative to traditional concrete drains. NDS grates are constructed with UV inhibitors which used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight, and easy to install. NDS has a full line of drainage products, fittings, and accessories available. The 5" Pro Series channel grate by NDS is part of their 5" Pro Series trench drain system. Each grate is 19.625" in length and 5.25" in width; two grates are needed for each section of the NDS Pro Series channel drain. NDS recommends that each grate is affixed to the channel with four stainless steel screws to prevent movement. Installed properly, these grates are rated for Class C loads of 175-325PSI, making them an affordable alternative to expensive metal grates. Pro Series trench drain covers are an affordable way to enhance the aesthetic of your hardscape

Quick Look

  • UV Inhibitors
  • 75.71 GPM
  • Material: High Impact Glass Reinforced Nylon
  • Grate Opening: 1/2” x 3”
  • ADA Compliant
  • H-20 Rated
  • Recommended for heavy-duty pneumatic tire forklifts and tractor trailers at speeds less than 20 mph
  • Product Class: 25IN
  • Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
  • Open Surface Area: 17.50sq. Inch per Ft.
  • Load Rating: Class C (175-325psi)
Shop the entire line of NDS 5" Pro Series Drains Products

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Pro Series Channel Grate, Heavy Traffic Technical Specifications
NDS Drainage Catalog
NDS 5" Pro Series Profile Channel Drain Technical Specifications
NDS 5" Pro Series Shallow Profile Channel Drain Technical Specifications
Más Información
Numero de parte 828
Color Grey
Longitud 19.5"
Anchura 5.19"
Apertura de rejilla 9/16"x 3-9/16"
Área de superficie abierta 22.90 Square Inches Per Foot
Galones por Minuto 48.70 GPM
