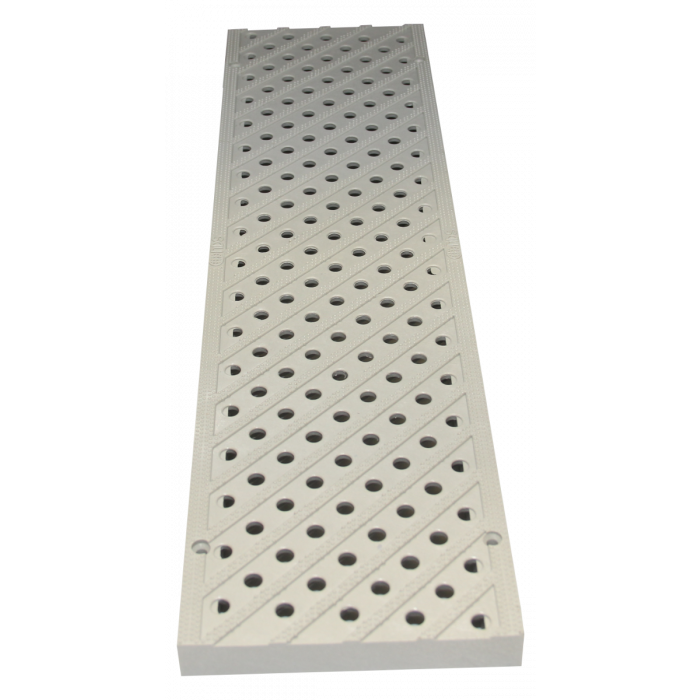

NDS 5" Pro Series Channel Grate, Pedestrian Traffic

51,96 US$
Disponible
SKU
826
  • Comprar 10 por 49,36 US$ cada uno y ahorra 5%

Dimensions: Length: 19-3/4" x Width: 5-3/16"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 5" Pro Series Channel Grate, Pedestrian Traffic

The NDS 5" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Kit is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
  • Grate Opening: 1/4”
  • Channel grates can be reduced to any lengths
  • Recommended for pedestrian traffic
  • Open Surface Area: 4.86 Sq. Inch per Ft
  • 21.03 GPM per foot
  • Load Recommendation: Class A (0-61 PSI / 3,800 lbs per foot)
  • Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1" screws (screws sold separately)
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series Additional Resources
NDS 5" Pro Series Channel Grate Product Review Blog

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Pro Series Channel Grate, Pedestrian Traffic Technical Specifications
NDS Drainage Catalog
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
Más Información
Brand NDS
Numero de parte 826
Color Gris
Longitud 19.75"
Anchura 5.19"
Apertura de rejilla 1/4"
Área de superficie abierta 4.86 square inches per foot
Galones por Minuto 24.26 GPM
