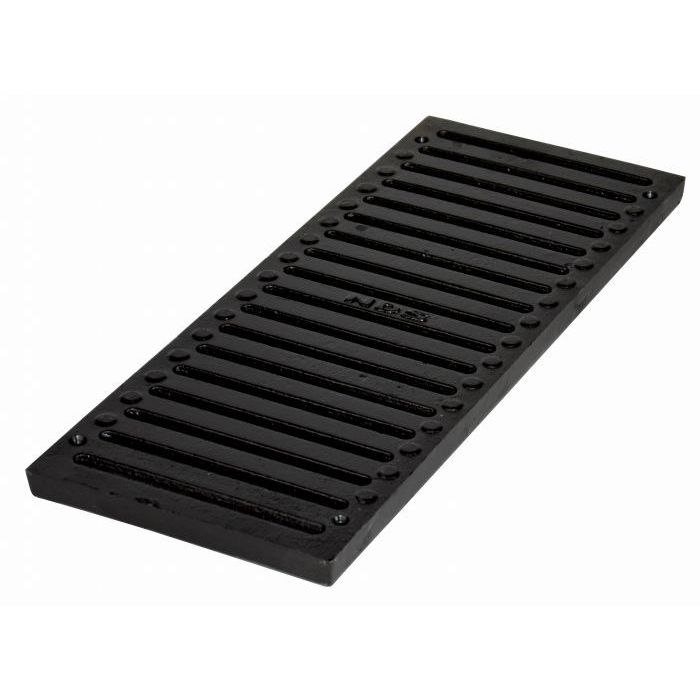

NDS 8" Pro Series Channel Grate, Ductile Iron
140,12 US$
Disponible
SKU
888
Dimensions:L:19-11/16" x W:7-13/16" x H:3/4"
Call in directly to 803-324-3225 for a personalized quote.
Product Details: NDS 8" Pro Series Channel Grate, Ductile Iron
NDS grates are a proven alternative to traditional concrete drains. NDS grates are constructed with UV inhibitors which are used to prevent fading and cracking from the sun, chemical-resistant, and rustproof all while being maintenance-free, lightweight, and easy to install. Pro Series channel drain covers are an affordable way to enhance the aesthetic of your hardscape.
Quick Look
- UV Inhibitors
- Ductile Iron
- ADA Compliant
- H-20 Rated
- Product Class: 25IN
- Use for NDS 8†Pro Series Channel
- Grate Opening: 9/16†x 6-1/8â€Â
- Open Surface Area: 23.3 Sq. Inches Per Foot.
- Class C Load Rated(175-325)PSI
- 72.28 GPM Per Foot
Additional Resources
How To Install A Pro Series Channel DrainNDS 8" Pro Series Channel Grate, Ductile Technical Specifications
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS 8" Pro Series Installation , 90 Intersection DetailNDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide
| Numero de parte | 888 |
|---|---|
| Color | Black |
| Longitud | 19.25" |
| Anchura | 7.80" |
| Apertura de rejilla | 9/16"x6-1/8" |
| Área de superficie abierta | 23.80 Square inches per foot |
| Galones por Minuto | 71.28 GPM |
