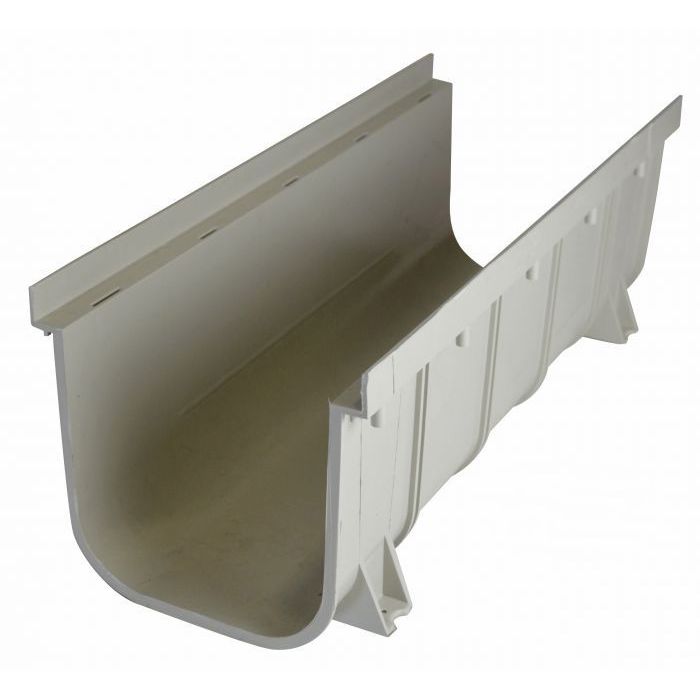

NDS 8" Pro Series Deep Profile Drain
- Comprar 10 por 52,61 $ cada uno y ahorra 5%
Dimensions:L:19-11/16" x W:8-1/4" x H:7-1/4"
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS 8" Pro Series Deep Profile Drain
NDS 8" Pro Series Deep Profile Drain Features include long deep profile high impact PVC channel drain with mechanical interlocking joints, structural foam Polypropylene light traffic channel grate, and UV inhibitors. Fits 3” or 4” s Sewer & Drain Fittings using End cap/knock-out end and outlet fitting simplifies assembly and installation. Create a channel as long as you need, or reduce it to lengths as short as 4" for smaller, interlocking sections.
- UV Inhibitors
- 8" Pro Series Deep Profile Channel will hold about the same volume of water as a 8” diameter pipe
- High Impact PVC
- PVC glue can be used to glue all pieces together
- Available in 19-11/16” lengths. The channel can be easily cut to any length
- ADA Compliant
- End caps can be purchased that has a 3” or 4” sewer and storm spout
- Sections of 8” Pro Series Channel can be connected using the interlocking end joints
- Product Class: 25IN
- Recommend a 1/8” gap be left between grates during installation to allow for expansion of the grates
- Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (screws sold separately.
Additional ResourcesHow To Install A NDS Pro Series Channel Drain
NDS 8" Pro Series Deep Profile Drain Technical Specifications
How do I choose the right channel drain for my drainage system?
Installation InstructionsNDS 8" Pro Series Installation , 90 Intersection Detail
NDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide
|Numero de parte||833|
