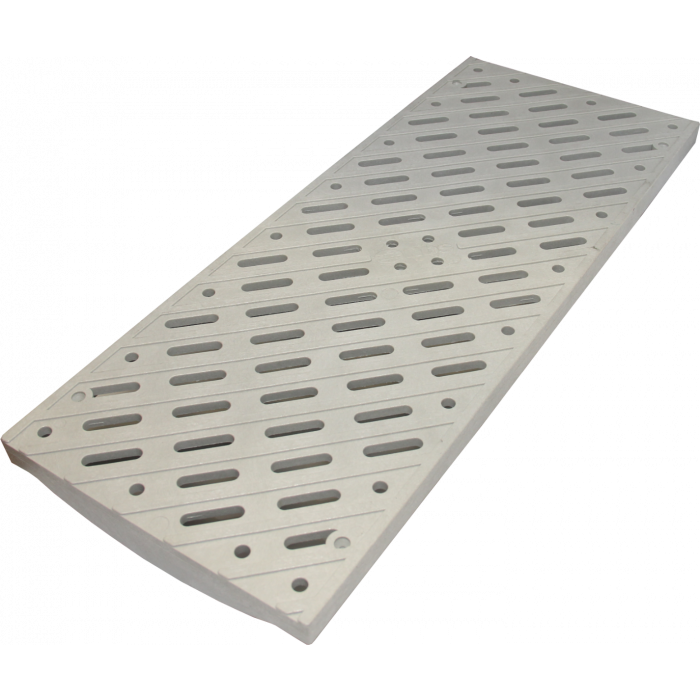

NDS 8" Pro Series Channel Grate, Pedestrian Traffic

63,32 US$
Disponible
SKU
836

Dimensions:W:7.75" x L:19.75" x H:3/4"


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS 8" Pro Series Channel Grate, Pedestrian Traffic

NDS grates are a proven alternative to traditional concrete drains. NDS grates are constructed with UV inhibitors which are used to prevent fading and cracking from the sun, chemical-resistant, and rustproof all while being maintenance-free, lightweight, and easy to install. NDS has a full line of drainage products, fittings, and accessories available. NDS recommends that each grate is affixed to the channel with four stainless steel screws to prevent movement. Installed properly, these grates are rated for Class B loads of 61-175PSI, making them an affordable alternative to expensive metal grates. Pro Series trench drain covers are an affordable way to enhance the aesthetic of your hardscape.

Quick Look

  • UV Inhibitors
  • HDPE-High Density Polyethylene
  • ADA Compliant
  • Product Class: 25IN
  • Use for NDS 8" Pro Series Channel
  • Open Surface Area: 13.82 Sq. Inches Per Foot.
  • Grate Opening: 1/4”
  • 42.28 GPM per Foot
  • Class A Load Rated (0-65)psi
  • Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (screws sold separately)
Shop the entire line of NDS 8" Pro Series Drains Products NDS 8" Pro Series FAQS

Additional Resources

How To Install A Pro Series Channel Drain
NDS 8" Pro Series Channel Grate, Pedestrian Traffic Technical Specifications

Installation Instructions

NDS 8" Pro Series Installation , 90 Intersection Detail
NDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide
Más Información
Numero de parte 836
Color Grey
Longitud 19.75"
Anchura 7.75"
Apertura de rejilla 1/4"
Área de superficie abierta 13.82 Square inches per foot
Galones por Minuto 42.28 GPM
