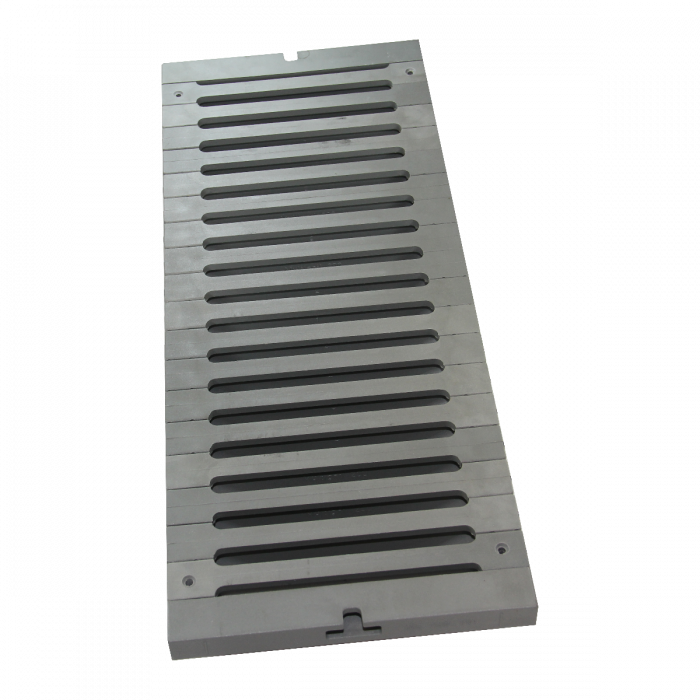

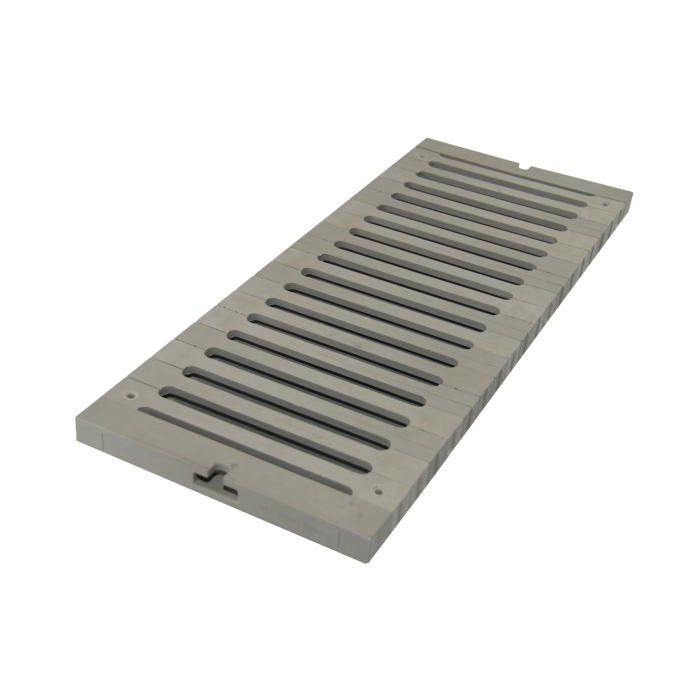

NDS Heavy Traffic 8" Pro Series Channel Grate
- Comprar 10 por 119,65 US$ cada uno y ahorra 8%
Dimensions: Length: 19-11/16" x Width: 7-7/8" x Height: 3/4"
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Heavy Traffic 8" Pro Series Channel Grate
NDS grates are a proven alternative to traditional concrete drains. NDS grates are constructed with UV inhibitors which are used to prevent fading and cracking from the sun, chemical-resistant, and rustproof, while also being maintenance-free, lightweight, and easy to install. NDS has a full line of drainage products, fittings, and accessories available. NDS recommends that each grate is affixed to the channel with four stainless steel screws to prevent movement. Installed properly, these grates are rated for Class C loads, making them an affordable alternative to expensive metal grates. Pro Series trench drain covers are an affordable way to enhance the aesthetic of your hardscape.
Quick Look
- Use With NDS 8" Pro Series Products
- Material: High Impact Glass Reinforced Nylon
- Dimensions: 19-11/16" LENGTH x 7-7/8" WIDTH x 3/4" HEIGHT
- Channel grates can be easily cut to any length
- ADA Compliant
- Open Surface Area: 30.85 Sq. Inches Per Foot
- Grate Opening: 1/2” x 5-3/4”
- Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
- H-20 Rated
- Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1" screws (screws sold separately)
Additional Resources
NDS Heavy Traffic 8" Pro Series Channel Grate Technical SpecificationsHow To Install A NDS Heavy Traffic 8" Pro Series Channel Grate
Installation Instructions
NDS 8" Pro Series Installation , 90 Intersection DetailNDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide
| Numero de parte | 838 |
|---|---|
| Color | Gris |
| Longitud | 19-11/16" |
| Anchura | 7.88" |
| Apertura de rejilla | 1/2†x 5-3/4†|
| Área de superficie abierta | 30.85 Sq. Inches Per Foot. |
| Galones por Minuto | 133.47 |
-
