NDS 5" Pro Series Channel Drain Kit with Metal Grate

74,10 US$
Disponible
SKU
864GMTL

Dimensions:L:39.5" x W:5-1/2" x H:4-3/4"


Includes: (Includes 2 Galvanized Steel Grates , #800-Channel (1qty.), #813-End Outlet (1qty.), and #812-End Cap (1qty.)


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS 5" Pro Series Channel Drain Kit with Metal Grate

The new and improved NDS 5" Pro Series Channel Drain Kit with Metal Grate is the most durable, feature-rich, and easy to install modular drainage system in its class. Each Channel snaps end-to-end quickly and easily with robust male-to-female locking clips for long channel runs. Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Included end cap and end outlet combined with new integrated second-bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee, and cross configurations to be made in the field without specialty accessories. New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. Popular applications include driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. Compatible with the patented NDS Pro Series Qwik-Turn Radius Coupling to allow for curving layouts with up to 6 degrees of deflection between couplings and channels – NDS is the only drainage manufacturer to offer this incredible ability! The 5" pro series channel kit comes complete with a channel, metal grates, screws, end caps/outlet, and installation instructions. Along the channels, outlets can be attached anywhere, and the system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes.

Quick Look

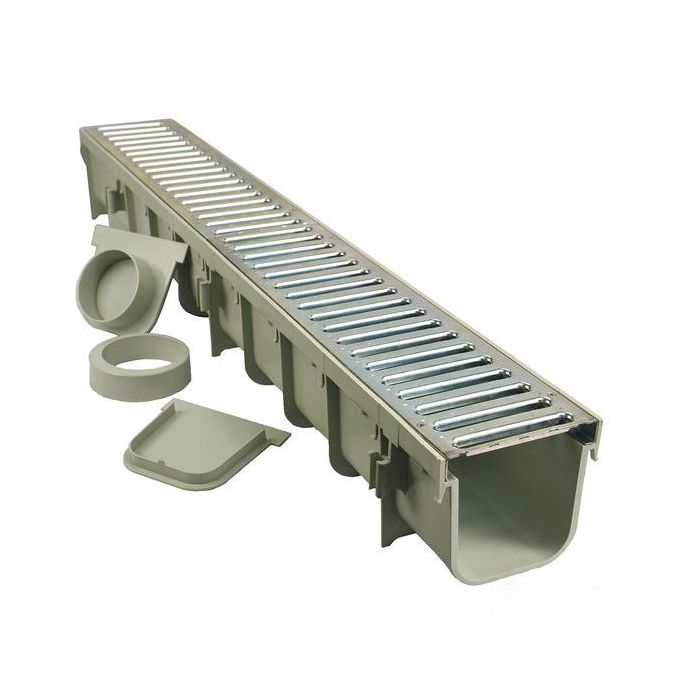

  • Includes 40" channel, 2 galvanized steel grates, grates, 1 end cap, 1 end outlet
  • Interlocking channel design for a secure, tight fit
  • Rebar tie clips for easier installation: Fits #4 Rebar
  • End outlet fits 3" Sewer & Drain Pipe and 4" Sewer & Drain Fittings
  • Material: Channel (Polyolefin) Grates (Galvanized Steel)
  • Grate Opening: 0.45”x 4”
  • Knockout bottom outlets fits 3" & 4" Sewer & Drain Fittings
  • Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
  • Recommended for medium-duty tire traffic
  • Open Surface Area: 19.32 sq. inch per linear ft.
  • 83.58 GPM per foot
  • ADA-compliant
  • Load Rating: Class B (61-175psi)
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series Additional Resources

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
