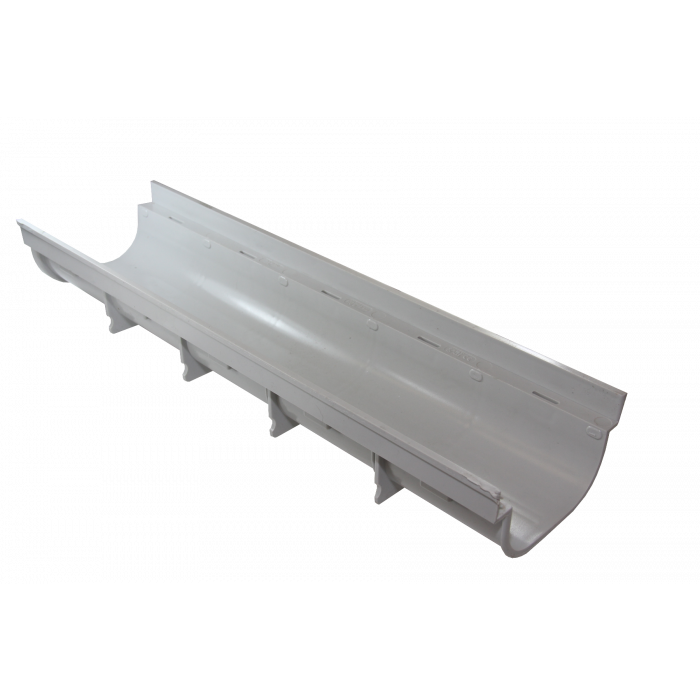

NDS 5" Pro Series Shallow Profile Channel Drain

34,56 US$
Disponible
SKU
820
  • Comprar 10 por 31,85 US$ cada uno y ahorra 8%

Dimensions:Length: 19-11/16" x Width: 5-1/2" x Height: 2-5/8"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 5" Pro Series Shallow Profile Channel Drain

The NDS 5" Pro Series Shallow Profile Channel Drain is the ideal solution for all your drainage needs. The 5" Pro Series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Shallow Profile Channel Drain is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)
  • Interlocking channel design for a secure, tight fit
  • Includes rebar tie clips for secure fit with #4 rebar
  • End outlet fits 3" Sewer Drain Pipe and 4" Sewer & Drain Fittings
  • Knockout bottom outlets fits 3" & 4" Sewer & Drain Fittings
  • Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
  • Load Recommendation: Varies on grate selection
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series Additional Resources

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Pro Series Shallow Profile Channel Drain Technical Specifications
NDS 5 Inch Pro Series Grate Technical Specifications

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
Más Información
Brand NDS
Numero de parte 820
Longitud 20"
Anchura 5-1/2"
Altura 2-5/8"
Peso 2 LBS
Color Gris
