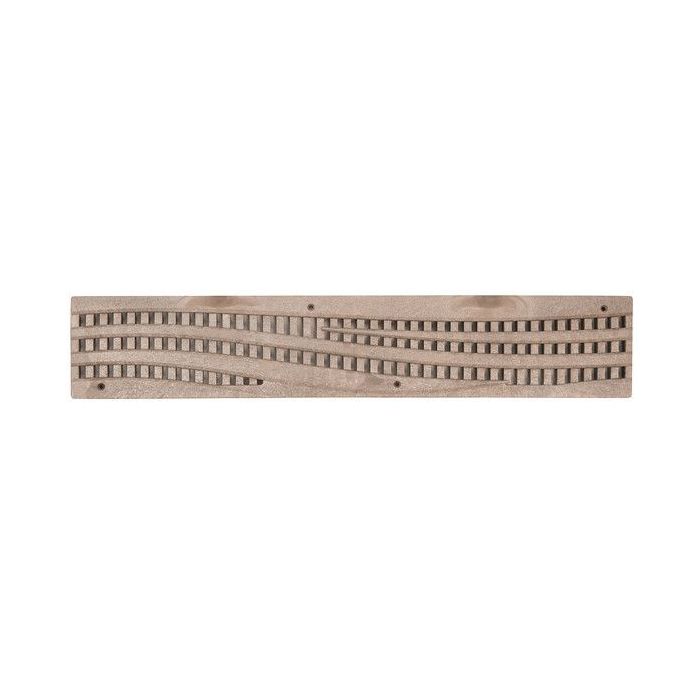

NDS Spee-D Channel Grate, Decorative Wave - Sand
- Comprar 12 por 33,44 $ cada uno y ahorra 5%
Dimensions:L:24" x W:4.42"
Color: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS Spee-D Channel Grate, Decorative Wave
The Spee-D Channel Grate, Decorative Wave is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. Part of NDS Spee-D Series
Quick Look
- High Density Foam Polyolefin (HDPE)
- Open Surface Area: 15.56" square Inches per Ft.
- UV Inhibitors
- Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)
- Use With NDS Spee-D Channel Drain (#400)
- ADA Compliant
- Rated to support automobiles, light trucks, and medium-duty pneumatic tires at speeds less than 20 m.p.h
- Will accommodate 47.60 gallons per minute 1/2" of head
- Load Rating: Class B (61-175 PSI)
NDS Spee-D Channel Additional Resources
Additional Resources
NDS Spee-D Channel Grate, Decorative Wave Technical SpecificationsHow To Install A Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Spee-D Channel Drain Light Vehicular Traffic Installation - PaversNDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
Numero de parte | 253S |
---|---|
Color | Sand |
Longitud | 24" |
Anchura | 4.12" |
-
Rejilla de drenaje del canal NDS Spee-DTan bajo como 21,80 $
