NDS Porous Filter Fabric Wrap For Flo-Well

13,58 US$
Disponible
SKU
FWFF67

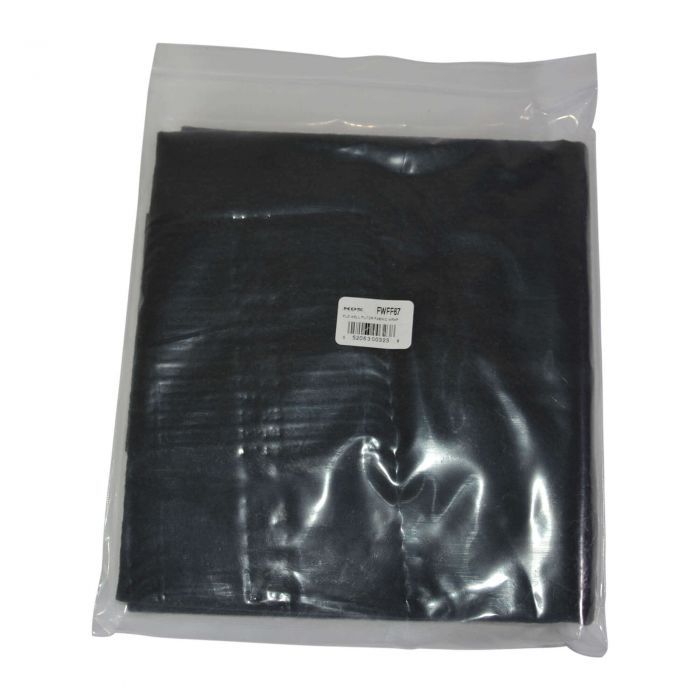

Product Details: NDS Porous Filter Fabric Wrap For Flo-Well

Flo-Well manufactured dry well presents an easy to install and sustainable solution for stormwater runoff. Used independently or as part of a larger stormwater management system, Flo-Well units collect, retain, and discharge stormwater on-site, offering a gravel-free alternative to a traditional dry well. Units are modular and can be connected in series or stacked to meet a variety of project needs. Manufactured from 100% recycled materials.

Quick Look

  • UV inhibitors
  • Prevent debris from entering during back fill
  • Adds a layer of protection by preventing soil from entering the punched-out weep holes of the Flo-Well Dry Well Side Panels and Cover Kit
  • 1 oz. Mullen burst, 175 psi, 200 GPM Flow through
  • Filter Fabric Wrap covers the Flo-Well Dry Well Tank sidewalls completely
  • Punch out weep holes on the Flo-Well Dry Well System before wrapping fabric around tank; secure with tape
  • Comes with 1 filter fabric wrap, 2 ft. wide X 7 ft. long
  • Polypropylene geotextile material
  • Fabric allows water to leach through and into the soil while it keeps debris and other larger particulates inside or outside the well

Additional Resources

NDS Porous Filter Fabric Wrap For Flo-Well Technical Specifications
How to Assemble A NDS Flo-Well
Case Study On Flo-Wells
NDS Flo-Well Calculator

Installation Instructions

How to Assemble A Flo-Well
NDS Stacked Flo-Well Installation Detail
NDS Installation Detail Load Class A & B Multiple Flo-Well Lateral Applications
NDS Installation Detail Load Class A & B Multiple Flo-Well Vertical Applications
NDS Flo-Well Installation Detail Load Class A & B Gravel Applications
NDS Flo-Well Installation Detail Load Class A & B Sand Applications
Más Información
Color Negro
Numero de parte FWFF67
Longitud .5
Altura 1
