7.36" NDS Dura-Slope Radius Coupling

$27.78
In stock
SKU
DSRC-100

Call in directly to 803-324-3225 for a personalized quote.

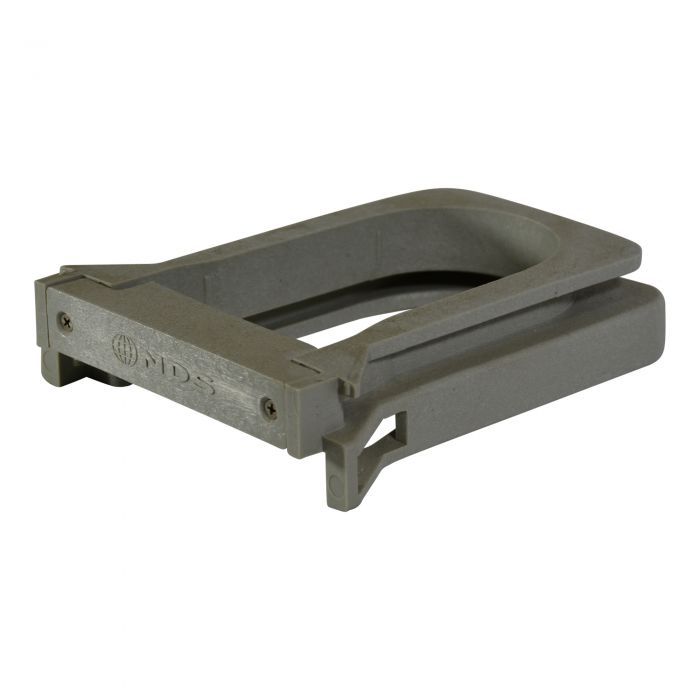

Product Details: 7.36" NDS Dura-Slope Radius Coupling

Designed specifically for draining 400-meter running tracks, Dura Slope Radius Couplings allow 3 degrees of deflection between trench drain sections, making an adjustable radius easily achievable for standard tracks and other curving applications.

Quick Look

  • Class B Load Rated(65-175 PSI)
  • ADA Compliant
  • Material: High Density Polyethylene (HDPE)
  • Open Area between Grates; 3/8” x 6”= 2.25 Sq. Inches
  • UV Inhibitors
  • Head Pressure / Flow Rate: 1.0” = 87.57 GPM Per Foot
  • Product Class: 25DS
Shop the entire line of NDS Dura Slope Products

Additional Resources

How To Install A Deep Dura Slope Channel Drain
7.36" NDS Dura-Slope Radius Coupling Technical Specifications
Dura Slope Trench Drain Catalog
Deep Dura Slope Channel Drain Specification Video
Deep Dura Slope Channel Drain On A Work Site
Dura Slope Installation Manual
Track Dura Slope Trench Drain System Brochure

Installation Instructions

NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
More Information
Part Number DSRC-100
Color Gray
