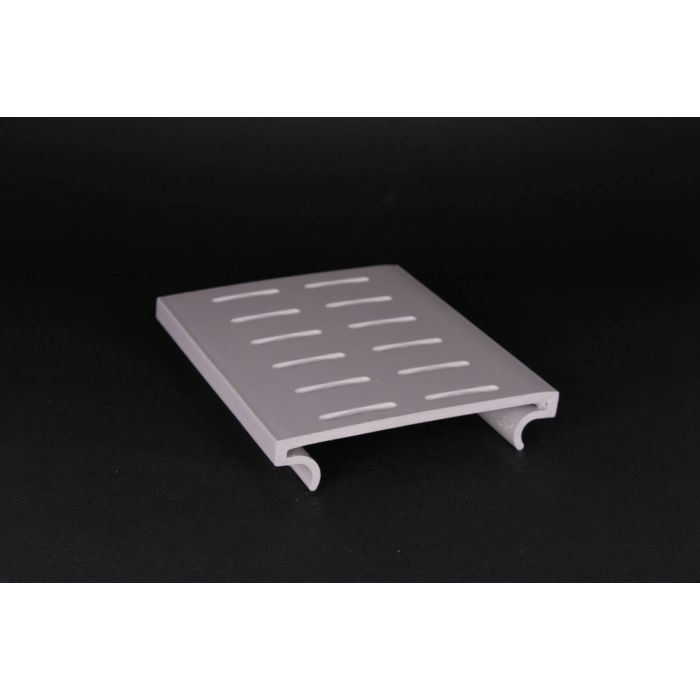

Flowmaster Commercial Top Cap - Grey (5 FT)
Dimensions: 4.75" x 60"
Product Details: Stegmeier Flowmaster Commercial Top Cap - Grey (5 FT)
Stegmeier Flowmaster Commercial Top Cap - Grey is designed to cover Stegmeier Flowmaster Commercial Deck Drains. Stegmeier Flowmaster Commercial grates' flange fits perfectly into the grooves of the channel drain. Stegmeier Flowmaster Commercial Deck Drain is a removable top drain that features a double wall base and a snap-in top. When installing this drain the tops are staggered past the joints making the joints very rigid. Because the Flowmaster Deck Drain tops are removable this drain is easy to clean and the tops can be replaced if ever damaged. It is recommended that you drill and pin (3/8″ rebar) the base at 3-foot intervals to stabilize against any movement in the concrete slab. Stegmeier offers a fiberglass Drain Dowel for this purpose. Stegmeier Flowmaster Commercial Top Cap - Grey is excellent for light-duty applications including pools, patios, spas, and tennis courts. This item is part of the Stegmeier Flowmaster Drainage System.
- UV Inhibitors
- High Density Polyethylene (HDPE)
- ADA Compliant
- 5 Foot Sections
- Use with Stegmeier Flowmaster Commercial Drains
Additional ResourcesStegmeier Flowmaster Drain Technical Specifications
Stegmeier Catalog Brochure
Stegmeier Flowmaster Drain Brochure
Installing a Stegmeier Drain on Existing Concrete Surface
|Length||60" - 61"|
