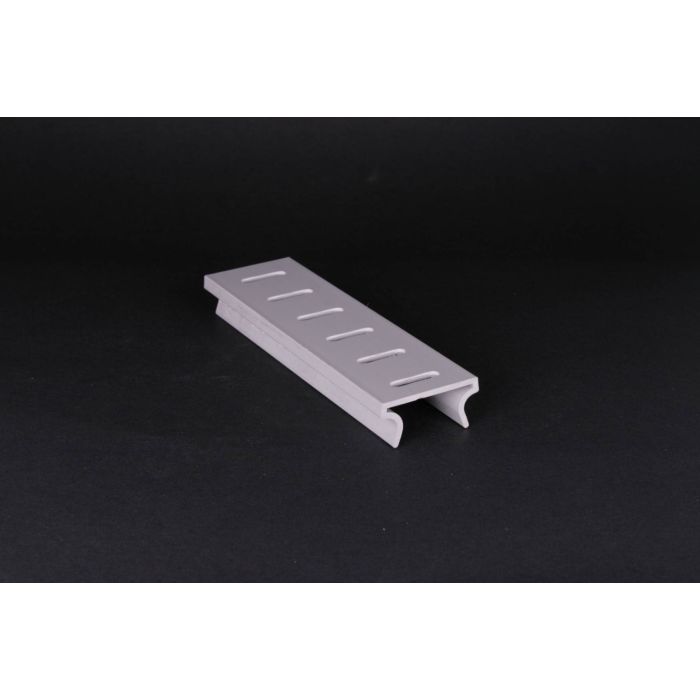

Frontier Drain Top Cap - Grey (5 FT)

Out of stock
Dimensions: 60" x 1.7"

Product Details: Stegmeier Frontier Drain Top Cap - Grey

Stegmeier Frontier Drain Top Cap - Grey is designed to cover Stegmeier Frontier Deck Drains. Stegmeier Frontier Deck Drain grates' flange fits perfectly into the grooves of the channel drain. Stegmeier Frontier Deck Drain is a removable top drain that features a double wall base and a snap-in top. When installing this drain the tops are staggered past the joints making the joints very rigid. Because the Frontier Deck Drain tops are removable this drain is easy to clean and the tops can be replaced if ever damaged. It is recommended that you drill and pin (3/8″ rebar) the base at 3-foot intervals to stabilize against any movement in the concrete slab. Stegmeier offers a fiberglass Drain Dowel for this purpose. Stegmeier Frontier Drain Top Cap - Grey is excellent for light-duty applications including pools, patios, spas, and tennis courts. This item is part of the Stegmeier Frontier Deck Drainage System.

Quick Look

  • UV Inhibitors
  • High Density Polyethylene (HDPE)
  • Down Adapter, Side Adapter and End Adapter all adapt to 1 1/2″ Schedule 40 Pipe
  • ADA Compliant
  • 5 Foot Sections
  • Stegmeier, LLC requires that a 3/8" rebar be placed every 36", midway in the drain to prevent damage due to concrete deck movement
  • Removable top for easy cleaning
  • Use with Stegmeier Frontier Deck Drains
Shop the entire line of Stegmeier Products offered at Drainage Connect

Additional Resources

How To Install Stegmeier Frontier Deck Drain
Stegmeier Catalog Brochure
Stegmeier Frontier Deck Drain and Fittings Installation Video
Stegmeier Frontier Deck Drain Technical Specifications
More Information
Part Number SDD-TCG
Color Gray
Length 60" - 61"
Width 1.7"
