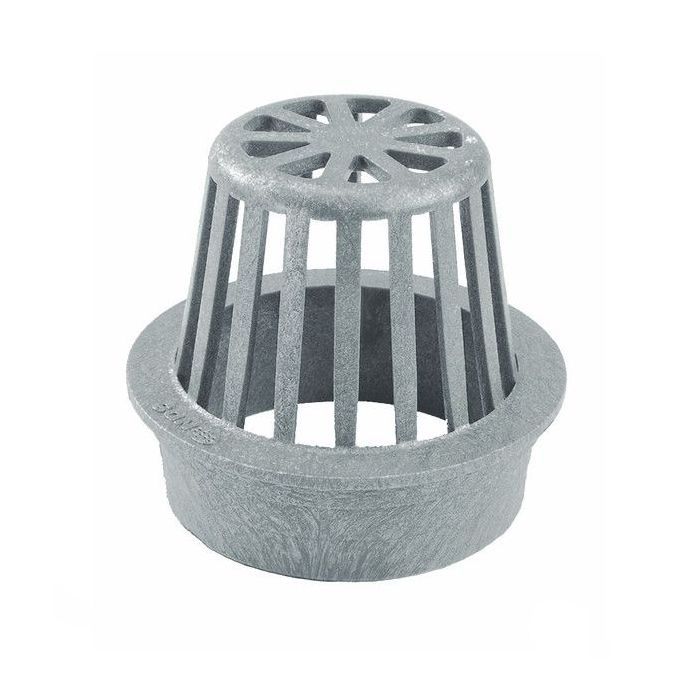

NDS 4" Atrium Grate - Gray

$10.56
In stock
SKU
76

Product Details: NDS 4" Atrium Grate

Atrium grates are ideal for planter beds, mulch areas, window wells, and areas prone to debris collection. This grate helps to collect and remove excess water from driveways, patios and any other outdoor areas, designed for maximum durability to handle light foot traffic. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. Can be used with 4" Sewer & Drain Pipe and Fittings, 4" Corrugated Pipe, and 4" Triple Wall Pipe.

Quick Look

  • Open surface area 17.0 sq. in
  • UV Inhibitors To Prevent Fading Or Cracking
  • 1/4" Grate Openings
  • High Density Polyethylene (HDPE)
  • ADA Compliant
  • Product Class: 25IN
  • Will accommodate 52.01 gallons per minute with 1/2” of head
  • Fits 4" Sewer & Drain Pipe and Fittings, 4" Corrugated Pipe and 4" Triple Wall Pipe

Additional Resources

How To Use A Atrium Grate
NDS 4" Atrium Grate Technical Specifications
More Information
Color Gray
Brand NDS
Part Number NDS 75
Width 4-3/16"
Height 4-7/16"
