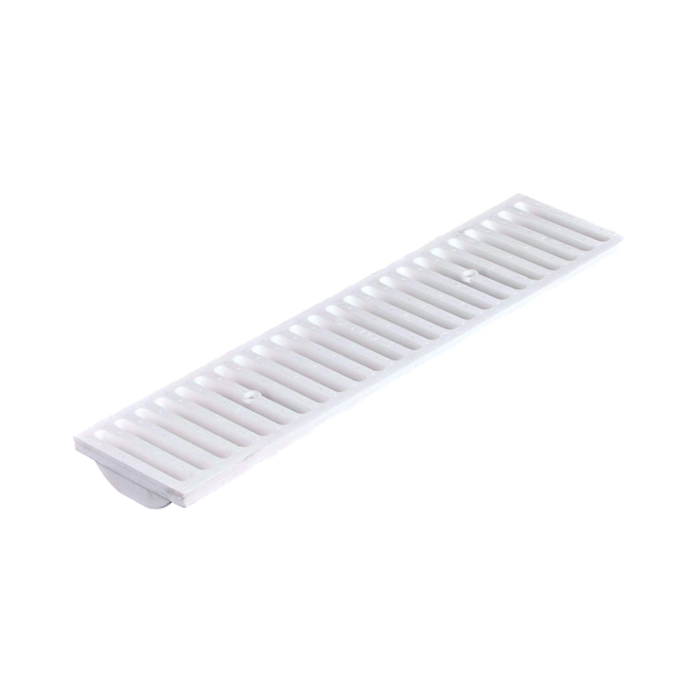

NDS Dura-Slope Channel Grate
Dimensions: LENGTH:24" x WIDTH:6" x HEIGHT:3/4"
Color: White (#660), Gray (#661), Green (#662), Black (#663), Sand (#664), Brick Red (#665)
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS Dura-Slope Channel Grate
The Dura Slope Channel Grate is designed to fit with NDS Dura Slope Channel Drains. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas. NDS Dura Slope channel grates are designed for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. NDS channel drains are a proven alternative to traditional concrete drains with UV inhibitors that are used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight, and easy to install.
Quick Look
- Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 1958) test methods by an independent AASHTO accredited lab
- Will accommodate 77.70 gallons per minute per foot with 1/2” of head
- Grate Opening: 1/2" x 3-13/16" Grate Opening
- Colors: White (#660), Gray (#661), Green (#662), Black (#663), Sand (#664), Brick Red (#665)
- ADA Compliant
- Use with NDS Dura Slope Channel Drains and Dura Slope Catch Basin (#DS-340)
- Made from UV Protected High Density Polyethylene (HDPE)
- Load Rated: Class B (61-175) PSI
Shop our entire line of NDS Dura Slope Channel Grates NDS Dura Slope FAQS
Additional Information
NDS Dura-Slope Channel Grate - Technical SpecificationsNDS Dura Slope Manual
Quick Start Guide for Dura Slope Trench Drain System
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
How To Use A NDS Dura Slope Channel Drain On A Work Site
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board SuspensionNDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
Part Number | 660 |
---|---|
Length | 24" |
Width | 6" |
Grate Opening | 1/2" x 3-13/16" |
Open Surface Area | 25.40 Square Inches Per Foot |
Gallons Per Minute | 77.70 GPM |
