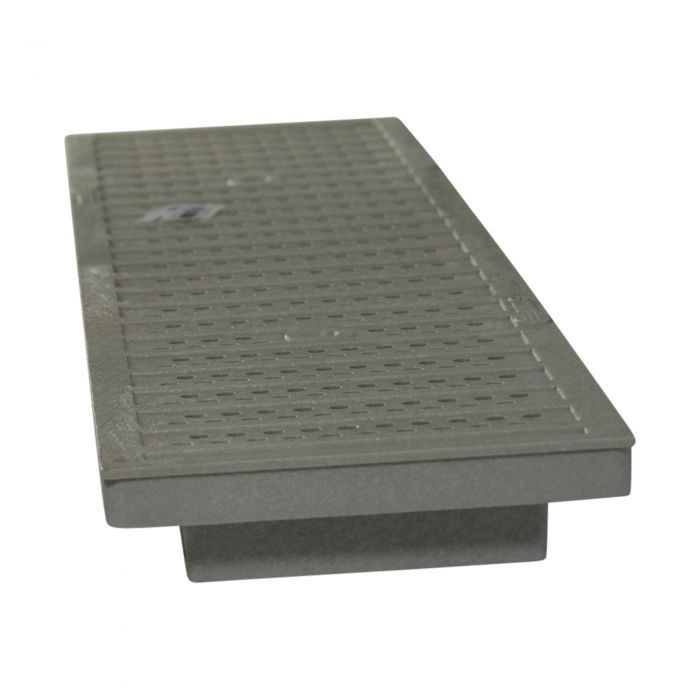

NDS Dura-Slope Plastic Perforated Channel Grate - Gray
Dimensions: Length: 24" x Width: 6" x Height: 3/4"
Color: White (#DS-670), Grey (#DS-671)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Dura-Slope Plastic Perforated Channel Grate
The NDS Dura Slope Trench Drain drainage system is a highly innovative and efficient solution for residential and non-residential drainage applications. With its construction using high-density polyethylene (HDPE), this drainage system offers durability and strength compared to traditional concrete channels. The smooth surface of the trench drain and the variety of grate options available make it an attractive option for residential and non-residential. It is also extremely easy to maintain, as the grates can be easily removed for cleaning and replacement if necessary. Whether you are a contractor, engineer, or building owner, the NDS Dura Slope Trench Drain drainage system is an investment worth making for long-lasting and effective drainage solutions.
Quick Look
- ADA Compliant
- Colors: White (NDS #DS-670), Gray (NDS #DS-671)
- Used for capturing and redirecting excess water to safe locations
- Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
- Dimensions: 24" LENGTH x 6" WIDTH x 3/4" HEIGHT
- Fits: Use with NDS Dura Slope Channel Drains and Dura Slope Catch Basin (NDS #DS-340)
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Grate Opening: 8.75 in sq. per foot
- Suitable for light vehicular traffic when properly installed
- Material: UV Protected High-Density Polyethylene (HDPE)
- Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 1958) test methods by an independent AASHTO accredited lab
- Will accommodate 26.77 gallons per minute per foot with 1/2” of head
NDS Dura Slope FAQS and Resources
Additional Resources
How To Install A NDS Dura Slope Trench DrainNDS Dura-Slope Plastic Perforated Channel Grate Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
How To Use A NDS Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board SuspensionNDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
Brand | NDS |
---|---|
Part Number | DS-671 |
Color | Gray |
Length | 24" |
Width | 6" |
Grate Opening | 1/4" |
Gallons Per Minute | 26.77 GPM |
