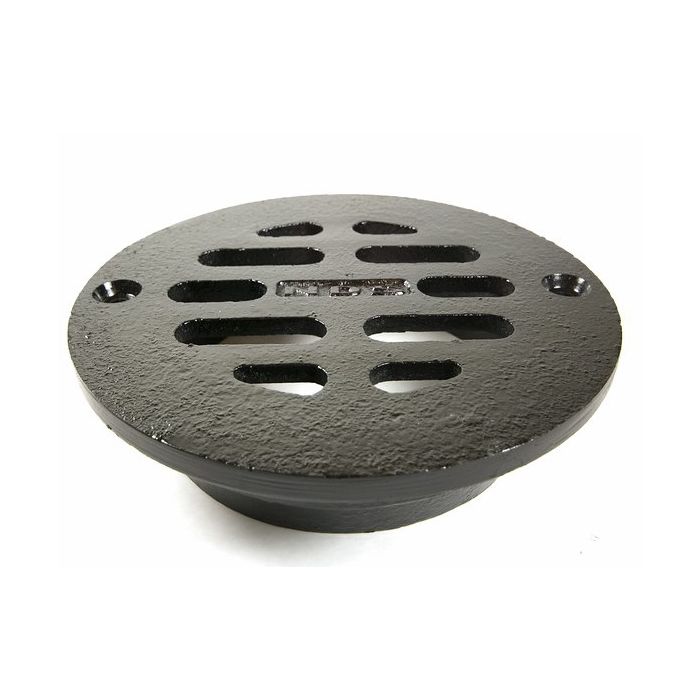

NDS Duracast In-Line 6" Round Grate

$49.95
In stock
SKU
D6

Dimensions: Length: 5.8" x Width: 5.8" x Height: 2-7/8"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Duracast In-Line 6" Round Grate

The NDS Duracast In-Line 6" Round Grate is a heavy-duty ductile iron round grate that is specifically designed for stormwater drainage systems. With its impressive load-bearing capacity, this grate is capable of handling loads ranging from 326 to 575 psi, while also meeting H-20 load rating standards. The Duracast In-Line 6" Round Grate is an excellent choice for areas with high traffic or heavy loads. Duracast In-Line 6" Round Grate is designed to fit 6" corrugated sewer and drain pipe. Ductile iron is equipped with a superior strength-to-weight ratio and improved resistance to corrosion. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.

Quick Look

  • ADA Compliant
  • UV Inhibitors
  • 1" Grate Opening
  • Material: Ductile Iron
  • Fits: NDS Spee-D Basins & 6” Corrugated and Sewer and Drain pipe
  • Load Recommendation: Class D (326-575 PSI / 89,920 lbs per foot)
  • Opening: 7.05 inches sq. open space
  • H-20 Rated
  • Will accommodate 21.57 gallons per minute with 1/2” of head
Shop the entire line of Round Grate Products

Additional Resources

NDS Duracast In-Line 6" Round Grate Technical Specifications

Installation Instructions

NDS Round Grate with Spee-D Basin 2-Outlets using Corrugated Pipe Installation Detail
NDS Round Grate with Spee-D Basin 2-Outlets Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet using Corrugated Pipe Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet Installation Detail
NDS Round Grate with Corrugated Pipe (Tee) Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Corrugated Pipe Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Installation Detail
NDS Round Grate with Sewer and Drain Elbow Corrugated Pipe Installation Detail
NDS Round Grate with Sewer and Drain Elbow Installation Detail
More Information
Part Number D6
Color Black
Length 5.81"
Width 5.8"
Height 2-7/8"
Grate Opening 7.05 in² open space
Open Surface Area 8-1/16"
Gallons Per Minute 21.57 GPM
