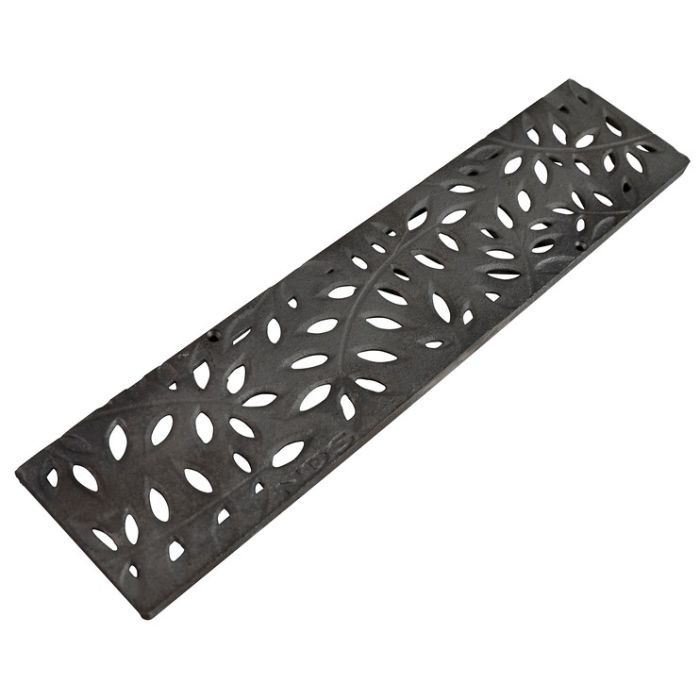

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)

46,42 US$
Disponible
SKU
554CI

Dimensions: Width: 2.75" x Length: 12" x Height: 3/8"


For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical) grates are a crucial part of the NDS Mini Channel drainage system. The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Quick Look

  • Use With NDS Mini Channel Drain (#500)
  • 1/4" x 5/16" Grate Opening
  • Dimensions: 12" LENGTH x 2.74" WIDTH
  • Will accommodate 15.08 gallons per minute per foot with 1/2” of head
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Screws, Phillips Head #4 x 5/8” screws (4 per grate)
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Material: Cast Iron
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel Additional Resources

Additional Resources

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical) Technical Specifications
Solution To Stormwaters
Will NDS Iron Metal Grates Rust?
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Mini Channel Drain Typical Landscape Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
Más Información
Numero de parte 554CI
Color Negro
Longitud 12"
Anchura 2.75"
Apertura de rejilla 15.08 GPM
Área de superficie abierta 4.93
Galones por Minuto 15.08
