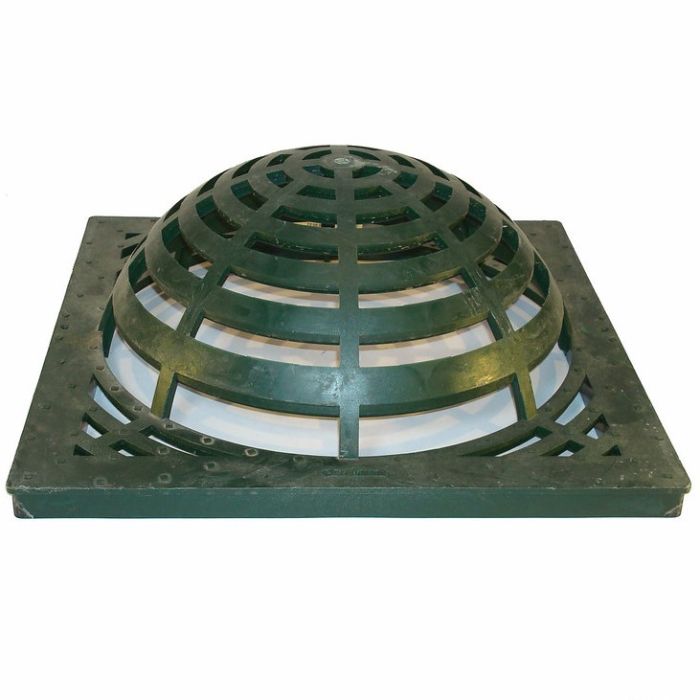

NDS 18" Square Catch Basin Atrium Grate - Green
Dimensions:L:16-13/16" x W:16-13/16" x H:6"
Color: Black (#1881), Green (#1891)
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS 18" Square Catch Basin Atrium Grate
Atrium grates are ideal for planter beds, mulch areas, window wells, and areas prone to debris collection. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Use with NDS 18" Catch Basin Series.
- High Density Foam Polyethylene (HDPE)
- Use With NDS 18" Catch Basin Series
- UV Inhibitors
- Open Surface Area: 89.40 Sq. Inches
- 1â€= 386.77 GPM Capacity
- ADA Compliant
- Fits: Catch Basin #1882, #1884, #1800, #1804, #1816, #1830 and #1840
- Product Class: 10ND
- 1/2" Grate Openings
Additional ResourcesHow To Fix A Downspout Problem
NDS 18" Square Catch Basin Atrium Grate Technical Specifications
How To Choose The Right Size NDS Catch Basin
|Numero de parte||NDS 1881|
|Apertura de rejilla||1/2Ã¢â‚¬Â|
|Área de superficie abierta||89.40 Sq. Inches|
|Galones por Minuto||1Ã¢â‚¬Â = 386.77 GPM|
