NDS Dura Slope Bottom Outlet Adapter

44,37 US$
Disponible
SKU
DS-126

Includes: The system consists of 4-FOOT trench drain sections, including 24 pre-sloped trench drain sections and 9 neutral trench drain sections. Pre-sloped sections have a slope of 0.7%


For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Dura Slope Bottom Outlet Adapter

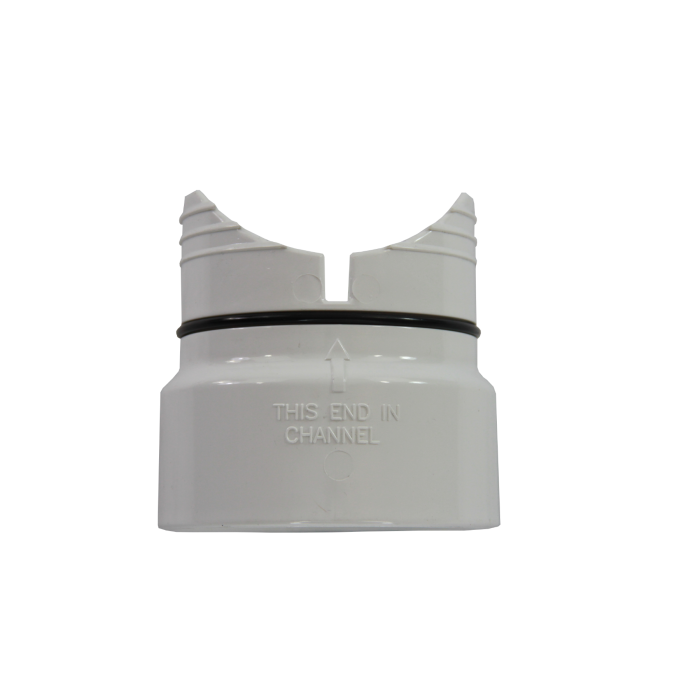

The NDS Dura Slope Bottom Outlet Adapter is part of the NDS Dura Slope Modular Drainage System. This product is used to attach to the bottom of NDS Dura Slope channel drains through the bottom outlet to allow 4-inch pipe and fittings to be connected to exit water out of the drainage system. This durable end outlet is designed to provide a secure and reliable seal to 4" pipe and pipe fittings for the end of the slope, preventing water from seeping out and causing erosion. Crafted from UV Protected High-Density Polyethylene, the NDS Dura Slope Bottom Outlet Adapter is built to last, making it a smart and cost-effective investment. It is quick and easy to install, ensuring that you can complete your project quickly and with minimal hassle. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.

Quick Look

  • Bottom outlets, drain outlets, and catch basins connect to the deepest end of the run.
  • Fits 4" S&D Pipe
  • If connecting to 4” sewer and drain (SDR35) pipe, cut out the bottom drain and insert the #DS-126 Bottom Outlet Adapter
  • If using 4” schedule 40 pipes, connect NDS part # 56-44 flexible coupling to the 4” pipe and then to the bottom drain of the channel. Tighten the clamps to secure in place
  • Other diameter pipes can be connected using the appropriate flexible coupling
  • ADA Compliant
  • UV Inhibitors
  • Accommodates with NDS Dura Slope Drainage Products
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Load Recommendation: Varies on Dura Slope Channel Grate selection
Shop the entire line of NDS Dura Slope Products NDS Dura Slope FAQS

Additional Resources

How To Install A NDS Dura Slope Channel Drain
NDS Dura Slope Accessories Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
NDS Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual

Installation Instructions

NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
Más Información
Numero de parte DS-126
Color Blanco
