Resort & Hospitality Drainage

One property, several drainage systems

An arrival court, guest shower, pool deck and commercial laundry can all need drainage, but they collect different water and impose different demands. Start with a plan of each catchment, its discharge destination and the people or vehicles that cross it. A decorative surface inlet does not provide roof waterproofing, wastewater treatment or pool suction protection.

At the porte-cochère, account for coaches, delivery vehicles and any designated fire access as well as guests with luggage. Around pools and terraces, consider bare feet, heels, mobility aids and housekeeping carts. Behind the building, distinguish rainfall on the loading apron from kitchen waste, equipment washwater, dumpster leachate and chemical spills. An RV or campground annex, golf course or marina adds its own collection and disposal requirements.

What a hospitality property actually needs

Design the surface, inlet and receiving system together. These five tasks help organize the equipment schedule and installation scope.

1. Grade and waterproof. Establish slopes to intended collection points, protect thresholds and provide an overflow path. Drainage slopes must also satisfy accessible-route limits and the applicable pool or plumbing code. Elevated terraces need a membrane drainage detail; grout and a surface channel alone do not waterproof a deck.
2. Intercept surface flow. A channel or trench drain can intercept a broad flow path. Locate it where grades deliver water to the inlet; determine channel fall and grate elevation from the selected system's instructions.
3. Collect at low points. A catch basin works where surrounding grades converge. A sump or removable basket can retain some debris with regular cleaning; it is not a universal filter or treatment system.
4. Convey the flow. Check pipe size, slope, invert elevations and connection losses, including the fittings and adapters. Where gravity discharge is unavailable, evaluate rerouting, storage or an appropriately designed pumped system before fixing drain elevations.
5. Approve the destination. Stormwater may discharge to an approved storm system, surface outlet or infiltration facility. A pop-up emitter is an outlet, not detention or treatment. A Flo-Well dry well needs suitable soils, groundwater separation, setbacks, storage and an overflow plan; neither product is a default outlet for wastewater.

Subsurface drainage and surface collection

A saturated lawn can need soil improvement, irrigation changes, regrading or subsurface drainage as well as surface inlets. A French drain collects water within a permeable trench; a surface channel collects runoff crossing paving. NDS EZflow is a gravel-free subsurface option in the manufacturer's range. Evaluate soil compatibility, pipe and envelope details, slope and a lawful outlet. Its manufacturer listing does not establish Drainage Connect availability.

How water moves across a resort campus

Sheet flow needs interception. A linear inlet is useful across a terrace or driveway where runoff arrives along a wide front. A point inlet can also work when the paving slopes to it. Grate intake, approach velocity and bypass matter; neither layout automatically captures all the water.

Concentrated flow needs a defined route. Water converges in valleys and at the low ends of paths. Sand, mulch and leaves can restrict inlets and occupy sump volume. Place accessible collection and cleanout points where the actual layout needs them, and protect adjacent landscaping from erosion.

Low points need an overflow strategy. Survey existing thresholds and inverts before a retrofit. Check where water goes if an inlet blocks or the receiving line surcharges, especially at a sunken loading well or occupied lower floor.

Roofs can add another catchment. Count a canopy in the receiving system's design only where its leaders actually connect. Route roof discharge away from passenger unloading and accessible paths. Combining permitted stormwater branches can be appropriate, but their downstream capacity and overflow behavior still need checking.

Putting numbers on the property before selecting a product

Ponding can result from grading, blockage, poor capture or inadequate downstream capacity. Measure the site and examine the whole flow path before choosing a larger drain.

Volume, then peak flow

One inch of rainfall on 1,000 sq ft is about 623 gallons before losses. For an illustrative hardscape runoff coefficient of C = 0.95, a 40 ft × 75 ft deck produces about 1,777 gallons per inch. Storage sizing also needs storm duration and the rate at which water can leave; rainfall depth alone does not give peak flow.

For small catchment screening, Q (gpm) ≈ 0.01039 × C × i × A, with rainfall intensity i in inches/hour and area A in square feet. At the hypothetical intensity of 6 in/hr and C = 0.95, 1,000 sq ft gives about 59 gpm; at 2 in/hr it gives about 20 gpm. Select the actual design frequency and duration from local criteria and catchment response time. Use the Runoff Calculator and runoff sizing guide for preliminary estimates.

Check the inlet, channel and discharge route

Check capture and bypass, channel depth and slope, outlet entrance losses, pipe friction, fittings, blockage allowance and downstream water level. A long grate does not guarantee capture, and a nominal 4-inch or 6-inch outlet does not have one universal GPM capacity. A larger outlet also cannot overcome a surcharged receiving system. FHWA's HEC-22, fourth edition, provides methods for evaluating these interacting constraints.

The 178 gpm arrival-court example is a demand estimate, not an outlet specification. Compare a deeper or wider channel, shorter runs, additional outlets and larger downstream pipes using the actual layout. Two outlets help only if flow reaches both and the receiving network has capacity. Steeper pipe can increase gravity-flow capacity, but does not guarantee self-cleaning.

Load classes from bare feet to the motorcoach lane

Record the heaviest permitted loaded equipment, axle or wheel loads, tire contact, crossing speed and turning or braking at the drain. Consider refuse trucks, fire access and maintenance equipment even if they are infrequent. A test force is not a vehicle weight rating or a guarantee against failure under every site condition.

• EN 1433 A15 — 15 kN test force; pedestrian and cycle-only areas.
• EN 1433 B125 — 125 kN; pedestrian areas, car parks and parking decks within the relevant installation group.
• EN 1433 C250 — 250 kN; kerb and edge-of-road applications, not a general truck-aisle specification.
• EN 1433 D400 — 400 kN; road traffic lanes and parking areas, subject to product and installation details.
• EN 1433 E600 / F900 — 600 / 900 kN; high and exceptionally high wheel-load applications.

Use the project's specified standard and the selected manufacturer's assembly documentation. EN classes and NDS letter classes are not interchangeable. Grate, rail, body, retention hardware, pavement support and installation must form a documented combination; mixing separately rated components does not create a certified assembly. See the load recommendation guide.

The porte-cochère and service route

An arrival court may be a road traffic location even when it also functions as a guest walkway. Select a supported vehicle-rated assembly and check pedestrian geometry separately. Prevent heavier equipment from crossing light-duty terrace or pool channels, or design the crossing for it. Material alone does not set the load class: NDS's #828 reinforced nylon grate carries manufacturer NDS Class C guidance, disproving a blanket rule that all plastic grates stop at Class B.

Accessibility, heel resistance and barefoot use

ADA §302.3 limits floor openings to those that do not allow passage of a sphere more than 1/2 inch in diameter, with elongated openings perpendicular to the dominant direction of travel. This opening rule does not certify an entire route or establish heel or barefoot safety. Select the actual opening dimensions, secure fit and surface texture; a manufacturer's heel-resistant label needs its own dimensional check.

Check transitions and stable, firm, slip-resistant surfaces, including when wet. Walking-surface cross slope on an accessible route is generally limited to 1:48 under ADA §403.3; coordinate pool drainage and shower requirements with their specific provisions. For barefoot areas, also evaluate sharp edges, grate movement, sun exposure and cleaning residue. No material is automatically cool or slip-resistant in every installation. See ADA and pedestrian drainage.

Where each drainage system belongs

Arrival courts, terraces and elevated decks

A channel outside the unloading zone can intercept runoff before it crosses the guest path. Match paver or stone depth, movement joints and structural support; slot-top assemblies need reachable cleaning access. Compare exact slot geometry and capture performance with removable grates. A terrace above occupied space also needs coordinated surface and membrane drainage, waterproofing terminations and overflow provisions.

Pool decks, spas and splash pads

Surface deck drains collect splash-out, rain and cleaning water. They cannot replace a pool suction outlet or its entrapment protection: CPSC identifies the mandatory pool/spa drain-cover standard under 16 CFR part 1450. Pool circulation and safety equipment belong in the aquatic system design.

The 2024 CDC Model Aquatic Health Code, §§4.8.1.3 and 4.11.4–4.11.6, separates deck drainage from recirculation, addresses protected discharge connections and treats backwash as pool wastewater. It is model guidance; the adopted local requirements and approving authority determine the project connection. Do not assume chlorinated or salt-containing pool water may infiltrate or enter a storm sewer. A splash pad can use recirculation or single-pass water; obtain its collection and disposal design rather than treating feature flow as ordinary rainfall. See pool deck drainage and aquatic facilities.

Guest showers, changing rooms and spa wet rooms

Choose point or linear shower drainage around the floor slope and waterproofing assembly. The catalog lists ACO shower drainage; ACO's range includes point and linear designs. Match the flange, membrane connection, outlet, trap access, finish thickness and actual shower flow. A narrow exterior deck drain is not a substitute for a shower drain with a documented waterproofing detail.

For a retrofit retaining a compatible clamping-ring drain, an external option is Schluter KERDI-DRAIN-A or KERDI-LINE-A: their documented purpose is adapting existing clamping-ring drains to the KERDI bonded-waterproofing system. That can be useful when the existing body is suitable to retain. Compare compatibility, build-up height, flow and access with the listed ACO options; this is a project-specific alternative, not evidence of better performance in every shower or of Drainage Connect supply.

Kitchens and laundry

Use point drains for localized floor collection, floor sinks for appropriate equipment receptors, and linear drains where a washdown line or larger wet area justifies them. The catalog includes ACO sanitary stainless channels, FloorDrain and BoxDrain. Evaluate accessible strainers, drainable interiors, floor joints and cleaning access along with the exact grate's openings and load rating. A stainless grate over a composite trench does not make that trench a sanitary stainless assembly.

The FDA Food Code §§5-402.10–5-402.13 addresses equipment waste connections, accessible grease traps and approved sewage disposal. It is a model for local adoption; apply the jurisdiction's food and plumbing requirements, including indirect waste connections and exceptions. Listed Josam Lite Line grease interceptors need selection by rated flow, grease capacity and installation conditions, not inlet diameter alone; use the JG-0100S submittal.

For commercial laundry, obtain washer dump rates and simultaneous-cycle assumptions, hot-water temperatures and detergent/bleach concentrations. Include the specified lint/solids interception, accessible cleaning and any required indirect receptor, trapping and venting. For a purpose-made example, Josam lists a 61800 lint-interceptor family; confirm its configuration, capacity and supply separately. A floor drain for incidental spills is not automatically sized for washer discharge. Below-grade installations also need a suitable discharge elevation or pumped design; a grease interceptor does not replace laundry solids control.

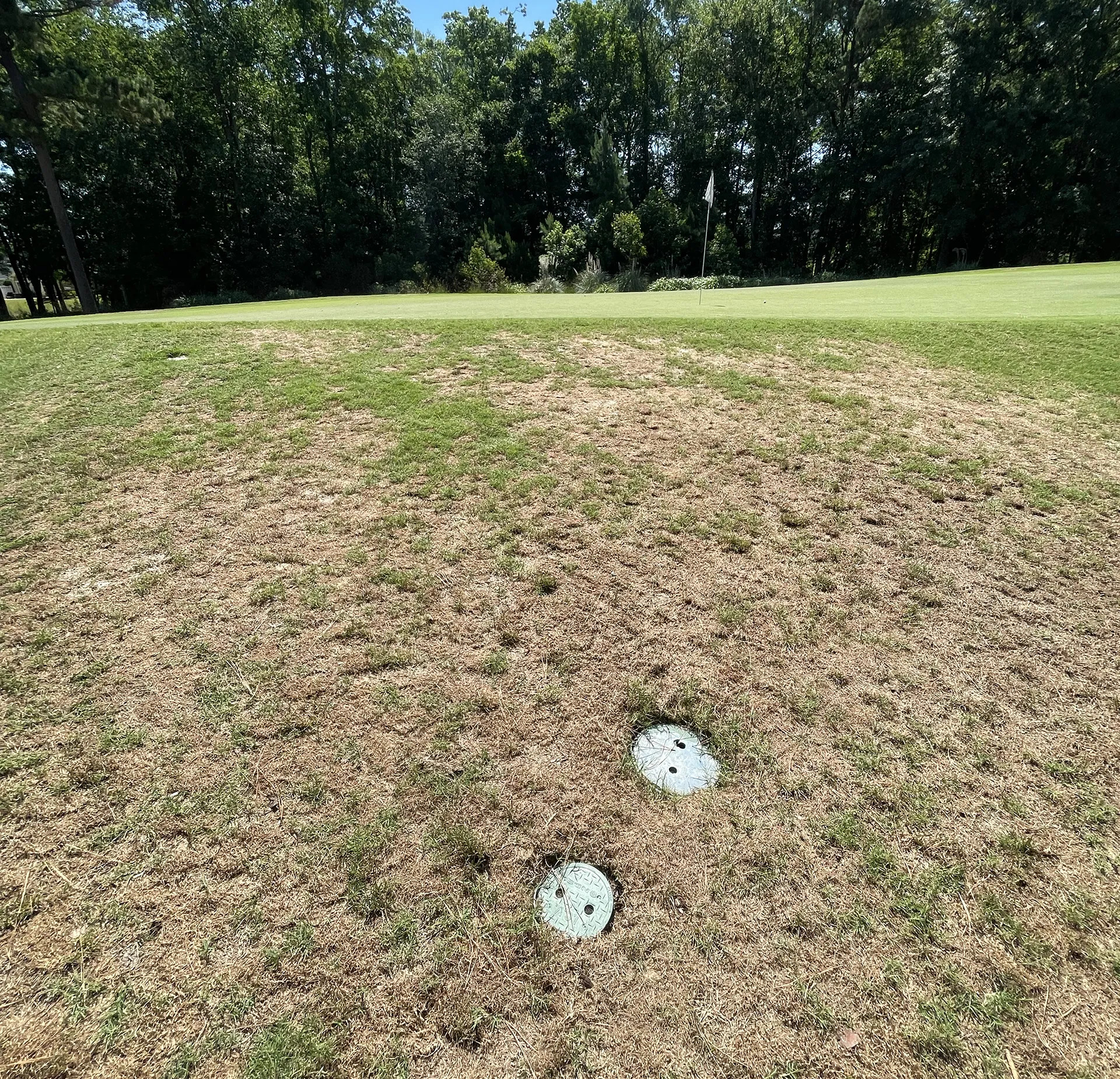

Lawns, fairways and beach paths

Use basins where grades converge and subsurface collection where water is within the soil. A domed atrium grate can provide elevated inlet area in planting beds, but it still needs debris removal and belongs away from pedestrian travel. Keep sand traps accessible on beach approaches. Verify the complete grate/basin installation for mowers and carts. Valve boxes provide service access to irrigation valves; they are not drainage basins or automatically vehicle-rated.

Service yards, wash pads and chemical exposure

Design service crossings for actual traffic and provide reachable sediment collection where needed. Keep cart-washing water and dumpster washdown out of ordinary storm drainage unless an explicitly approved treatment and discharge arrangement permits that stream. EPA's equipment-washing guidance explains capture and treatment approaches; a catch basin alone does not remove dissolved detergent or emulsified oil. Chemical storage may require separate containment and controlled removal.

Assess the whole assembly against salt, disinfectants, acids, cleaning chemicals and temperature: body, grate, edge rail, fasteners, seals and joint materials. Stainless steel can also pit or corrode in chloride exposure; coated iron and galvanized steel depend on coating condition. Plastic families use different resins and temperature limits. Use a documented compatibility assessment and the specified cleaning procedure rather than a blanket coastal-material rule. ACO's stainless cleaning and chemical guidance distinguishes metals and seal materials.

Catalog options, zone by zone

These are starting points for a coordinated specification. Catalog listings do not establish inventory, lead time or suitability of an unspecified assembly.
