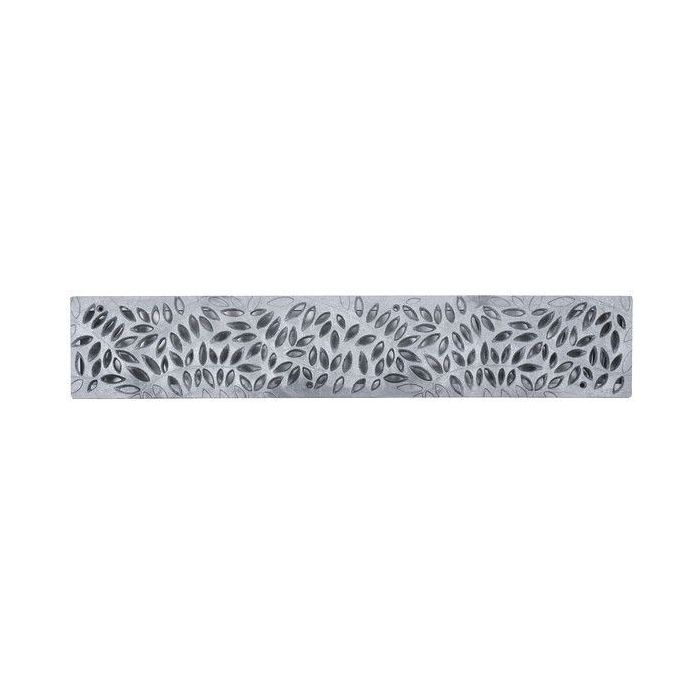

NDS Spee-D Botanical Channel Grate, Cast Iron
Dimensions: Length: 24" x Width: 4.12"
For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Spee-D Botanical Channel Grate, Cast Iron
The NDS Spee-D Botanical Channel Grate, Cast Iron is part of the NDS Spee-D drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install.
Quick Look
- Material: Raw Cast Iron Grate
- Open Surface Area: 17.89 Sq. Inch per Ft.
- Equipped with UV Inhibitors
- ADA Compliant
- 55 GPM
- Load Rating: Class B(61-175psi)
NDS Spee-D Channel FAQS and Resources
Additional Resources
NDS Botanical Spee-D Channel Grate, Cast Iron Technical SpecificationsHow To Install A Spee-D Channel Drain
Will Iron Metal Grates Rust? BLOG
| Part Number | 252CI |
|---|---|
| Color | Black |
| Length | 24" |
| Width | 4.12" |
| Grate Opening | 3/8"x3-1/4" |
| Open Surface Area | 8.99 square inches per foot |
| Gallons Per Minute | 27.50 GPM |
