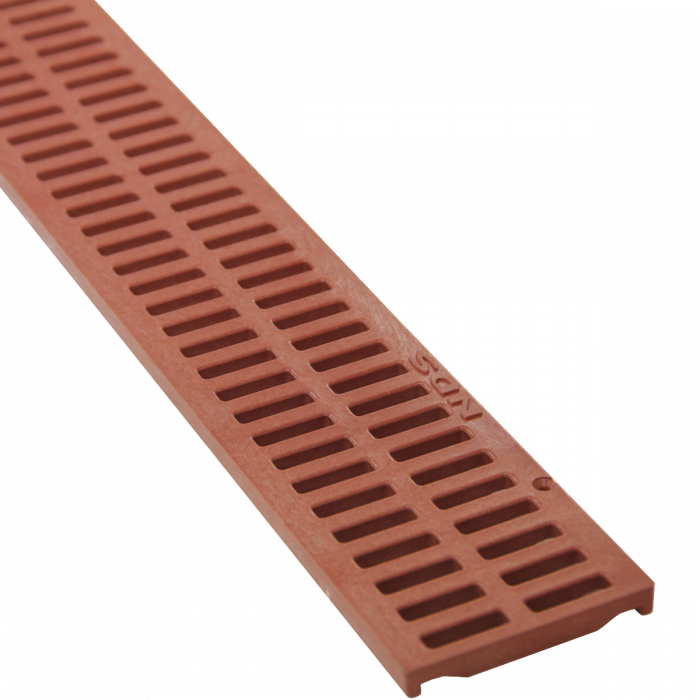

NDS Mini Channel Grate - Brick Red

$16.98
In stock
SKU
551
  • Buy 16 for $16.40 each and save 3%
  • Buy 48 for $16.05 each and save 5%

Dimensions: Length: 36" x Width: 2.75" x Height: 1/4"


Colors: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)


For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Mini Channel Grate

NDS Mini Channel grates are a crucial part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in six colors: White (#540), Gray (#541), Green (#542), Sand/Tan (#544), Red (#551), and Black (#543). The channel grates fit securely into the 6 FT Mini channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Quick Look

  • Use With NDS Mini Channel Drain (#500)
  • Color Choices: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)
  • 1/4" x 5/16" Grate Opening
  • Dimensions: 36" LENGTH x 2.75" WIDTH
  • Will accommodate 30.29 gallons per minute per foot with 1/2” of head
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel Additional Resources

Additional Information

How To Install NDS Spee-D Channel Drain or NDS Mini Channel Drain
NDS Mini Channel Drain Grates - Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Mini Channel Drain Typical Landscape Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
More Information
Brand NDS
Part Number 551
Color Brick Red
Length 36"
Width 2 3/4"
Grate Opening 1/4" x 5/16"
Open Surface Area 9.90 square inches per foot
Gallons Per Minute 30.29
