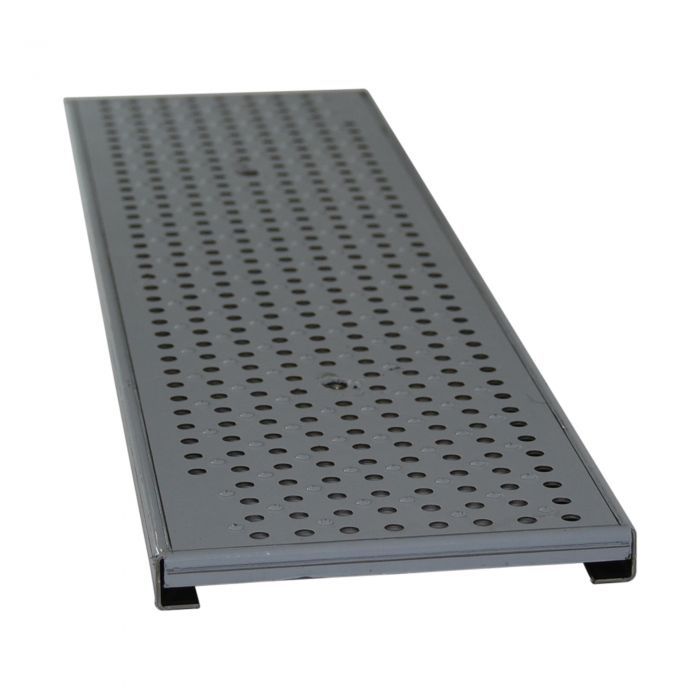

NDS Stainless Steel Dura Slope Trench Drain Grate
$185.29
In stock
SKU
DS-226
Dimensions: L:24" x W:6" x H:3/4"
Material: Stainless Steel (#DS-226), Galvanized Steel (#DS-228)
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS Stainless Steel Dura Slope Trench Drain Grate
NDS 2' Stainless Steel Dura Slope Trench Drain Grate is a high-quality, dependable, and best-in-class trench drain system. Each Dura Slope Trench Drain has Various grating options, Stainless steel, galvanized, cast iron, and plastic grates are available! Although this item is a Perforated metal grate, pedestrian traffic rated, heelproof, and ADA compliant.
Quick Look
- Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 1958) test methods by an independent AASHTO accredited lab
- Stainless Steel
- ADA Compliant
- Class A Load Rated (0-60 PSI)
- Grate Opening: 7.63 in sq. per foot
- Product Class: 25DS
- 23.34 GPM
- Open surface area 7.63 sq. inches per ft
- Fits: Use with Dura Slope Channel Drains and Dura Slope Catch Basin (#DS-340)
Additional Resources
How To Install A NDS Dura Slope Trench DrainNDS 2' Stainless Steel Dura Slope Trench Drain Grate Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
How To Use A NDS Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board SuspensionNDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
| Part Number | DS-226 |
|---|---|
| Length | 24" |
| Width | 6" |
| Grate Opening | 1/4" |
| Open Surface Area | 7.63 Square Inches Per Foot |
| Gallons Per Minute | 23.34 GPM |
